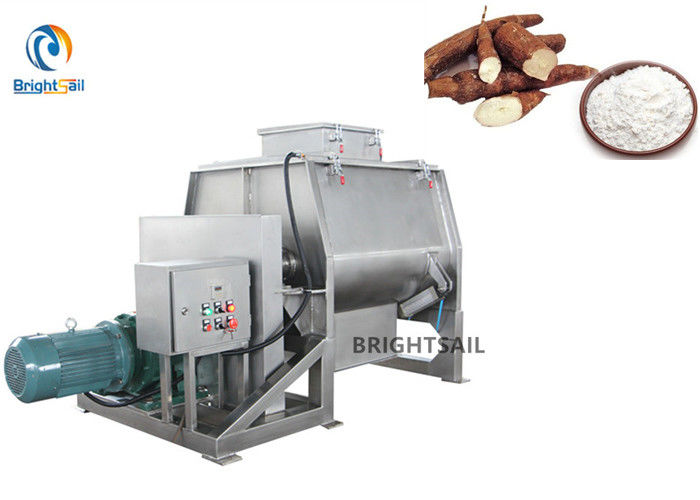

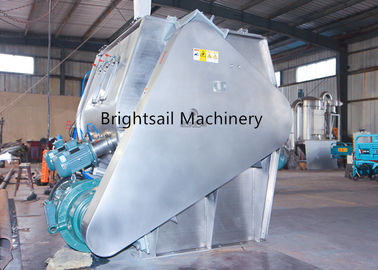

Double Shaft Paddle Grain Powder Mixer Machine , Cassava Flour Blending Machine

Double shaft paddle grain powder mixer machine cassava flour blending machine

BSL double shaft paddle mixer is also called no gravity mixer, it is widely applied in mixing powder and powder, granular and granular, granular and powder, and few liquid. This machine is used for food, chemical, pesticide, feeding stuff, pharmacy and other industries.

Main features:

1. Reverse rotation, different feeding angle, short stirring time
2. Compact design, hopper is installed in the rotating shaft, the mixing uniformity reaches 99%
3. There is only 2-5mm gap between the blade and the wall, and the open drain
4. Patented design to ensure the leakage of the outlet of the rotating shaft
5. Stirring funnel full welding polishing process, excluding screws, nuts and other fasteners
6. The whole machine is made of stainless steel, except for the gear reducer, direct-acting mechanism and bearing seat, the appearance is beautiful

Working method:

Double shaft paddle mixer is with 2 horizontal paddle shaft, and there is the paddle on each shaft. With the driven equipment, two cross paddle shafts moves intersection and patho-occlusion. Driven equipment makes paddle rotating fast, the rotating paddle generates centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant non-gravity state). Driven by the blades, material is mixed back and forth, also sheared and separated by the meshing space between the twin shafts, fast and evenly mixed.

Technical data:
