Product Details:
|
| Product Name: | Mixing Powder Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Speed(rpm): | 17-62 | Applicable Materials: | Dry Powder |
| Material: | SUS304,SUS 316,carbon Steel | Volume: | 60-12000L |
| Other Name: | Mixer Machine | Another Name: | Powder Mixer Machine |
| Highlight: | food industry protein powder mixer machine,60l protein powder mixer machine,12000l powder blender machine |
||
Food Industry Stainless Steel 60 To 12000L Protein Powder Mixer Machine
Two Sealing Methods:
Packing seal is a kind of conventional seal, on which gas seal can be added to increase the tightness.
Mechanical seal has better sealing performance than packing seal, less leakage and long service life. It can be used for powder and liquid, with wide application and high price.
Its components include moving ring, static ring, cooling device, compression spring, etc. (depending on the specific equipment).
Technical Data:whey protein powder ribbon blender
| Model | Max work volume(L) | Speed(rpm) | Motor(kw) | Overall size(L*W*H)(mm) | Weight(kg) |
| BSR-100 | 60L | 62 | 3 | 1080*758*615 | 330 |
| BSR-300 | 180L | 49 | 5.5 | 1550*812*1015 | 780 |
| BSR-500 | 300L | 46 | 7.5 | 1975*1059*1120 | 955 |
| BSR-1000 | 600L | 35 | 11 | 2340*1380*1455 | 1400 |
| BSR-2000 | 1200L | 33 | 15 | 2480*1651*1805 | 2500 |
| BSR-3000 | 1800L | 33 | 18.5 | 2945*1896*1980 | 3300 |
| BSR-4000 | 2400L | 29 | 22 | 3038*1946*2205 | 3600 |
| BSR-5000 | 3000L | 29 | 30 | 3932*2010*2035 | 4320 |
| BSR-6000 | 3600L | 26 | 37 | 3938*1882*2246 | 5300 |
| BSR-8000 | 4800L | 26 | 45 | 3986*2160*2516 | 6800 |
| BSR-10000 | 6000L | 19 | 55 | 4500*2270*2667 | 8900 |
| BSR-15000 | 9000L | 17 | 75 | 5363*2470*3020 | 9950 |
| BSR-20000 | 12000L | 17 | 90 | 5670*2650*3497 | 11140 |
Working Method:

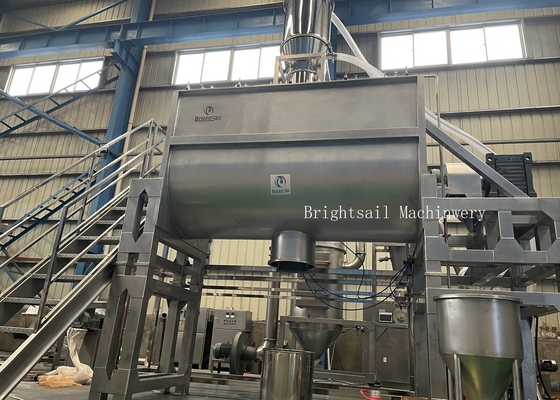

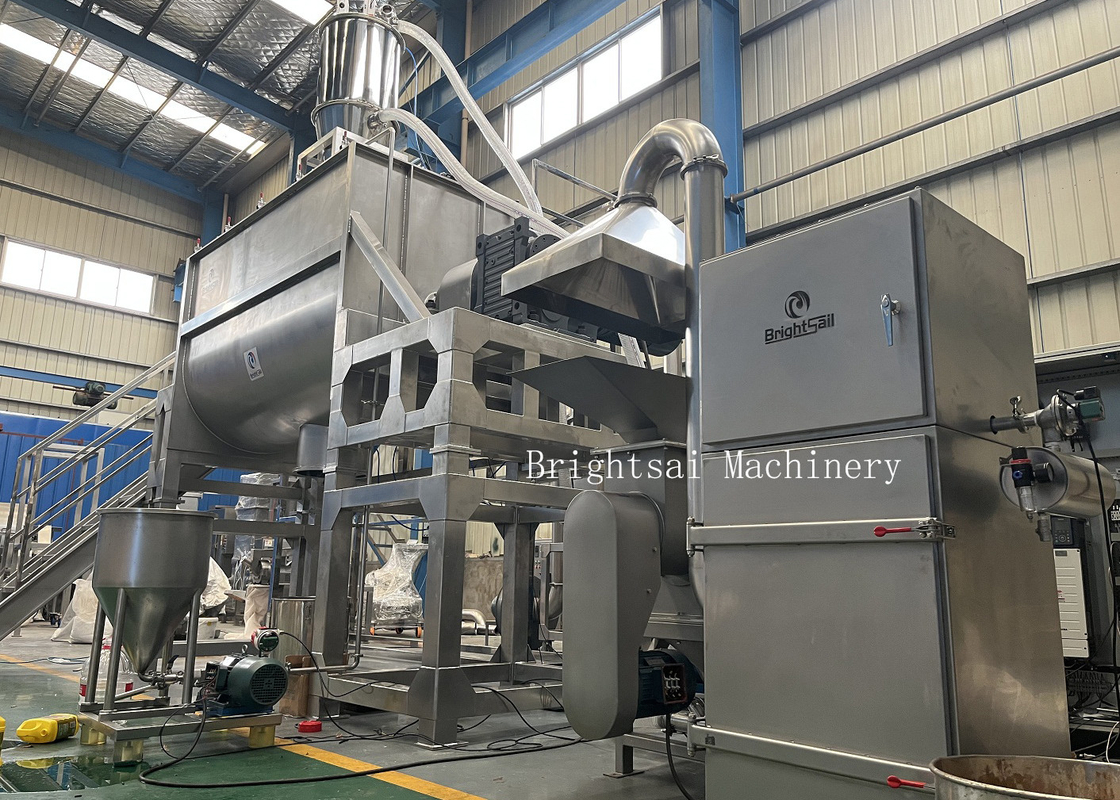

The BSR horizontal dry powder mixer is composed of a U-shaped cylinder, a transmission part and a belt-type stirring blade, usually with two or three layers. The outer screw concentrates the material from one side to the center, and the inner screw conveys the material from the center to both sides. , forming convective mixing.
Great for mixing protein or dry powders with liquids. Such products can also be used in many fields.
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
