Product Details:
|
| Product Name: | Spice Grinder,spice Grinding Machine,spice Pulverizer,spice Powder Making Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS304/316 | Input Size: | <15mm |
| Cpacity: | 80-1200 Kg/h | Fineness: | 10-120 Mesh |
| Voltage: | Customized | Package: | Container |
| Highlight: | pin mill grinding machine,flour blending machine |
||
Industry grain powder grinder machine rice wheat corn flour milling machine

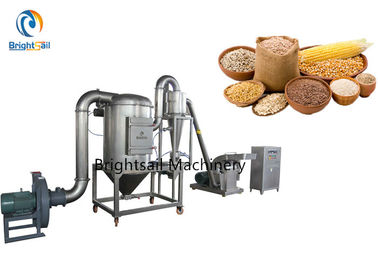

BS pulverizer machine is a new designed grinding machine with air-cooling system. It can make powder at 20-120mesh with cyclone and dust collector system. It is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc. such as sugar, salt, crystal material; chili, pepper, turmeric, ginger, coriander, cumin, cinnamon, cardamom, star anise, celery seed, licorice; rice, corn, wheat, barley, etc.
Working method:
The material enters the grinding chamber through the feeding hopper, is impacted by the high-speed rotating tool, is thrown on the fixed bush, and then is bounced and cut. At the same time, under the alternating effects of impact, cutting, and grinding forces, the material is finely refined. Under the action of tension, the finished product is absorbed by the cyclone through a sieve and discharged from the rotary valve, while some ultra-fine powder is collected by the filter bag.
Main features:
1) Simple structure, convenient installation and maintenance.
2) The world's advanced brand-name motors, electrical components, bearings and operating parts are used.
3) There is no dust during production. The dust can be collected in the dust box.
4) During production, the temperature remains normal and does not become hot. So the color and nature of the material will not change.
5) Grinding spices and oils with 10% -20% oil content.
Our service:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Introduce the product to the customer in detail, answer the question raised by customer carefully.
* Make plans for choice according to the needs and special requirements from customer.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Provide technical support
* Provide spare parts with cost price.
* Establish long-term and friendly relationship.
Technical data:
| Model | BS-400 | BS-630 | BS-880 | BS-1000 |
| Capacity(kg/h) | 80-1200 | 400-1800 | 800-2500 | 1000-3000 |
| Fineness(mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
| Main crush motor(kw) | 22 | 37 | 45 | 55 |
| Overall size(L*W*H)(mm) | 5400*1300*2700 | 6800*1300*2700 | 7800*1800*3200 |
8800*2000*3300 |
