Product Details:
|
| Product Name: | Chili Mill | Material: | SS304/316 |
|---|---|---|---|
| Feed Size: | <100mm | Output Size: | 0.5-20mm |
| Capacity: | 50-1000kg/h | Another Name: | Sri Lanka Chili Grinding Machine |
| Applicable Materials: | Licorice,konjak,chili,cinnamon... | Other Name: | Chili Grinding Machine |
| Highlight: | Coarse Crusher Clove Granules Grinder,1000Kg Capacity Powder Crusher Machine,sri lanka chili grinding machine |
||

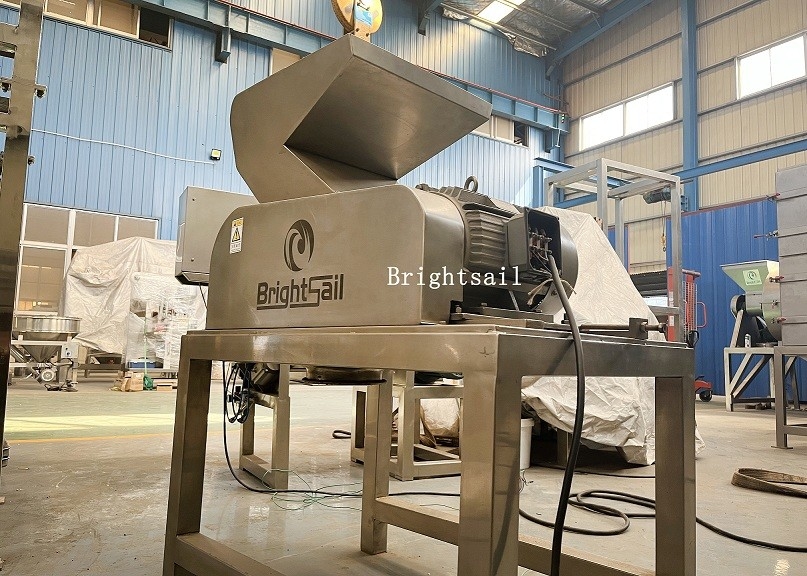

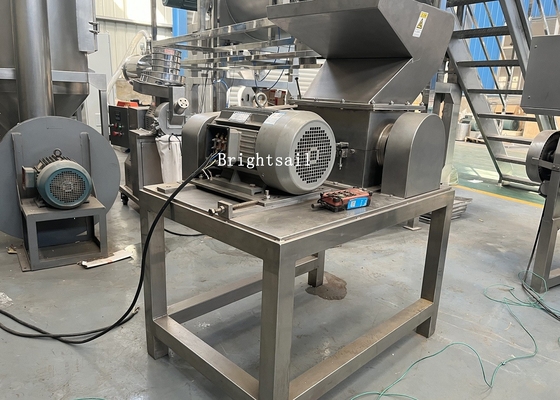

80 To 1500 Kg Per Capacity Chinese Medicine Coarse Crusher Clove Granules Grinder
About Us:
I, Years Professional in Pharmaceutical & Food & Chemical Machinery!
II, A Full Range of Technical Support, Not Only for Our Machines, But Also for Your Production Process!
III, We self manufacture sugar coating machine, chocolate coating plant, mixing machine, grinding machine, drying machine...etc.
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
FAQ:
Q: How do you pack your machines?
A: If it's a small machine, it's packed in wooden cases.
If it is a large machine or many machines, we will take the container, we will split the machine into several parts, then wrap the machine with wrapping film, and then fix it in the container with wire rope to prevent them from shaking during transportation.
Technical Data:
| Model |
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300 | 100-800 | 200-1000 | 500-1500 |
|
Size of input granules (mm)
|
<100 | <100 | <100 | <100 |
|
Crushing Fineness(mm)
|
0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960 | 960 | 960 | 960 |
|
Motor power(KW)
|
3 | 5.5 | 7.5 | 11 |
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
|
Weight(Kg)
|
200 | 300 | 380 | 500 |
Introduction :
BSC is widely used in pharmaceutical, chemical, food and other industries on dry, fragile crushing materials. The material with low softening point and high viscosity is not suitable for this machine. BSC is suitable for pelleting or primary grinding (grinding large materials into small particles) , such as pepper tablets, ginger, gum Arabic, dry tablets and so on. There are two types for you to choose, one is vertical (the discharge port is behind the machine) , the other is desktop (the discharge port is under the machine) .
Working Method :
Spice grinder is a horizontal grinder used to cut large pieces of material into small pieces. There is a coupling at the end of the shaft so that it will not be blocked during operation. The raw material is injected into the hopper, the rotating blade is fixed, and the crushing cavity is used for crushing and cutting. Material in the role of rotating centrifugal force, the automatic flow to the discharge port. The size of the final product is controlled by the screen. The Blade is made of durable alloy steel.
