Product Details:
|
| Product Name: | Food Dehydrator | Application: | Industry Of Chemical,foodstuff,medical |
|---|---|---|---|
| Heating Source: | Steam+electricity | Warranty: | One Year |
| Temperature Range: | 20-160(adjustable) | Voltage: | Customized |
| Package: | Wooden Case Or Container | Other Name: | Drying Machine |
| After-sales Services: | Provided | ||
| Highlight: | Hot Air Circulation Oven,food Dehydrating Machine,Industrial Spice Oven Machine |
||

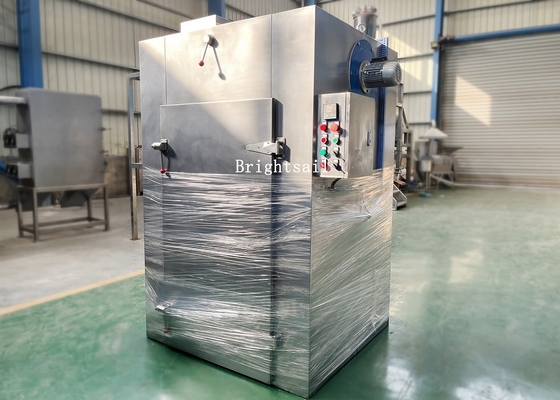

Industrial Hot Air Circulation Oven Spice Vegetable Fruit Food Drying Machine
Packing And Shipping:
*Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.
*If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
About Us:
Brightsail Industries Group Co.,Ltd. is the trade dept of Jiangyin Brightsail Machinery Co.,Ltd and Jiangyin Heng Sheng Steel Structure Co.Ltd which is established in 2002.
We provide professional powder processing overall solution,grinder,mixer,sifter,welding service,welding machine,chemical powder...etc.
Technical Data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
Product Introduction:
BSO hot air circulation dryer is mainly used for drying vegetables, fruits, seafood, Chinese herbal medicines, grains, herbs, etc. Can be widely used in food, chemical, pharmaceutical and other industries. High productivity and low energy consumption.
Working Method:
Our BSO drying machine uses steam or electricity as heat. There is a steam radiator or electric heating element that produces heat. The use of fans for convection heat transfer, heat transfer to the material, constantly add fresh air, exhaust moisture. During the drying process, maintain the appropriate relative temperature and humidity in the box. The biggest characteristic is most hot air circulates in the box body, enhances the heat and mass transfer, saves the energy. These two series are widely used in pharmaceutical, chemical, food, light industry, heavy industry and other industries of raw materials and products heating and dehumidification.
Main Structure:
The machine is mainly composed of drying chamber, combustion chamber, electric heating pipe, ventilation system and control system.
1. Drying room: stainless steel material is used inside and coated steel plate is used outside to save cost while ensuring hygiene and corrosion resistance in the drying process.
2. Combustion chamber: in order to solve the smoke and dust generated in the production process, the combustion chamber is connected with the chimney, which is efficient and convenient.
3. Ventilation: in terms of humidity control, the ventilation system plays an important role in balancing the humidity and air in the machine.

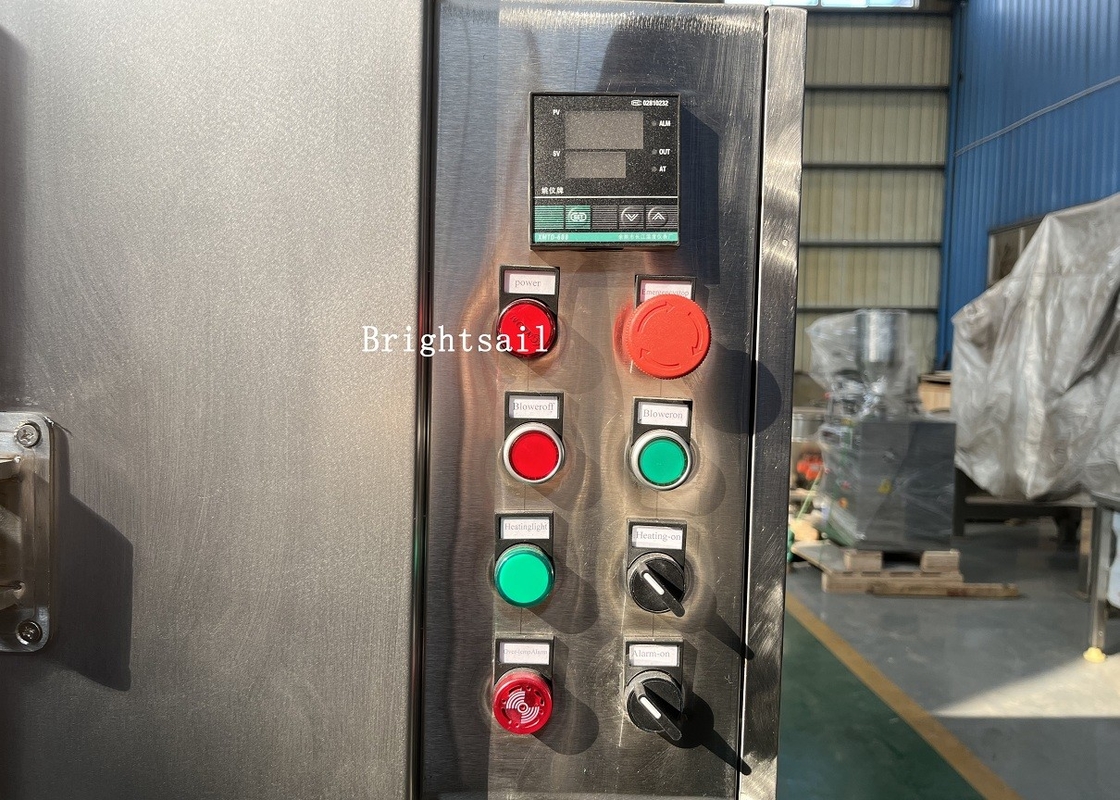

4. Control system: the control cabinet controls the electric heating pipe and fan. In addition, a temperature and humidity tester is installed to facilitate users to understand the actual situation.
Main features:
1. Adopt centrifugal multi-blade fan circulation system, special air duct structure, stable temperature control, uniform temperature field, standard manufacturing process, beautiful appearance, convenient operation and maintenance, only need to provide power supply and required working environment when purchasing.
2. The parts and assemblies are completely matched, and the main functional parts are original parts of the international advanced level.
3. Oven control system, over-temperature power protection and buzzer alarm, 24 hours unattended, safe use.
4. Equipped with high temperature resistant silicone rubber waterstop; people's awareness of environmental protection; protect the health of workers.
