Product Details:
|
| Heating Source: | Steam+electricity | Warranty: | One Year |
|---|---|---|---|
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Highlight: | customized industrial dehydrator,60kg capacity industrial dehydrator,konjak drying industrial dehydrator |
||

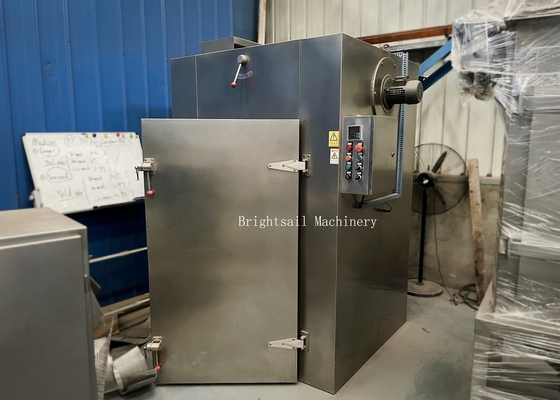

Customized 60 To 480 Kg Per Hr Capacity Konjak Drying Machine Industrial Dehydrator
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
FAQ:
1) Q: How do you pack your machines?
A: If it's a small machine, it's packed in wooden cases.
If it is a large machine or many machines, we will take the container, we will split the machine into several parts, then wrap the machine with wrapping film, and then fix it in the container with wire rope to prevent them from shaking during transportation.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
Description:
The food dryer is a multifunctional drying device, which mainly circulates the forced hot air heated by electric heating pipe or steam heat exchanger in the box to strengthen heat transfer and achieve the effect of drying materials. The hot air circulation drying oven is equipped with low noise, high temperature resistant axial fan and automatic temperature control system. The whole circulation system is fully sealed, which improves the thermal efficiency. Hot air circulation oven technology is at the international advanced level. It is an energy-saving product, which improves the economic benefits for many manufacturers. BSO industrial dryer adopts low-noise, high-temperature resistant axial fan and fully sealed automatic temperature control system to improve the thermal efficiency of the oven from the traditional 3-7% to the current 35-45%. Our products can be customized according to needs.
Advantages:
1. The whole machine and baking tray are made of stainless steel.
2. Most of the hot air is inside the circuit, with high thermal efficiency and energy saving.
3. High-pressure ventilation and adjustable air panels are used in the box to dry the materials evenly.
4. The source can be steam or electricity.
5. Equipped with temperature control device, easy to install and maintain. It has a wide range of applications and can dry various materials. It is a multi-functional drying equipment.
