Product Details:
|
| Product Name: | Sugar Milling Machine | Maximum Capacity: | 5000kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Material: | SS304 |
| Applicable Materials: | Foodstuff Industry | Our Services: | Pre-sales Service And After-sale Service |
| Other Name: | Sugar Mill | ||
| Highlight: | food industry sugar milling machine,120 mesh sugar milling machine,12mesh machines used in sugar mill |
||
Food Industry 12 To 120 Mesh Powder Making Sugar Milling Machine
Production:

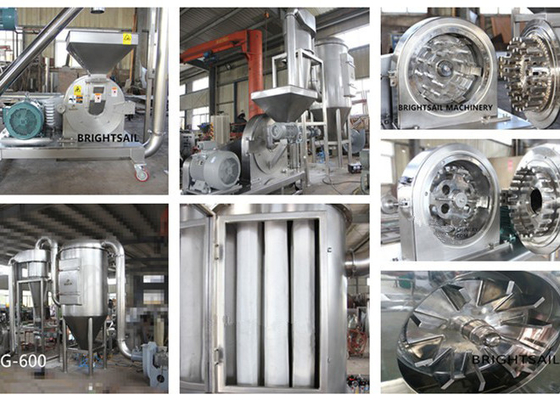

The BSG sugar mill produced by our company is a kind of high-efficiency sugar factory designed and developed by our company. The machine has good grinding effect on crystal materials such as sugar, salt and sodium bicarbonate. Also suitable for grinding spices, herbs, grains and so on. There are two knives for you to choose from. One is a hammer, the other is a disk. Seminal plasma effect is slightly better than hammering effect, that is, seminal plasma effect is better than hammering effect. The disc produces more heat than the hammer. When the material thermal sensitivity is high, the preferred hammerhead.
Working Method:
The material is crushed by the high-speed relative movement of the moving fixed disc and rotating disc, the impact of the grooved disc, the friction and mutual impact of the material. The crushed materials can be directly discharged from the crushing chamber of the crusher, and the required particle size can be obtained by installing screens with different pore sizes.
Main Features:
(1) The whole machine is made of stainless steel, and the inner surface of the shell becomes smooth after processing, which changes the phenomenon of residual powder caused by the rough inner surface of the machine. Make the production of medicines, food and chemical products more in line with national standards and GMP requirements.
(2) The grinding net is made of high-quality stainless steel. When another particle size powder is needed, the screen can be easily replaced.

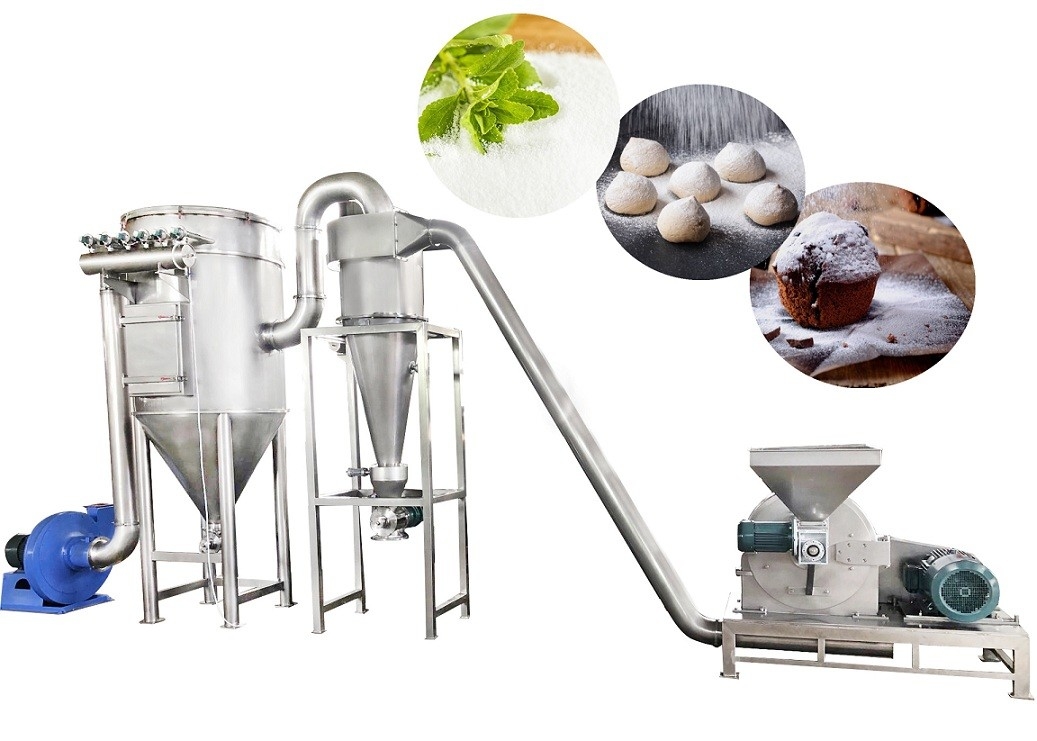

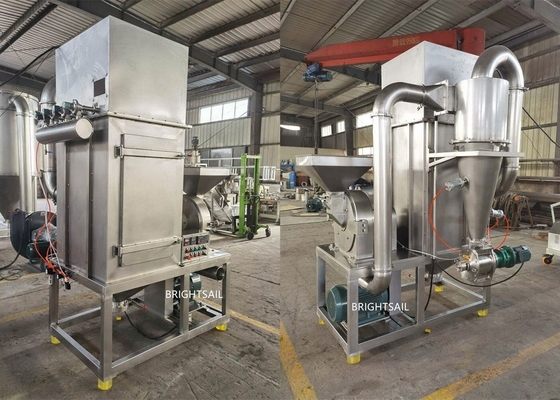

(3) Excellent cyclone powder discharge system, through the powder discharge motor automatically rotates the powder discharge device, it is hoped that the powder discharge is even, so that the powder discharge is stable and does not fly.
(4) All stainless steel structure, in line with GMP standards, in line with food-grade, chemical-grade, and pharmaceutical-grade standards.
Technical Data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
