Product Details:
|
| Product Name: | Superfine Powder Making Machine | Application: | Industries Of Chemical,medical,foodstuff |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800 Kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Other Name: | Air Classifier Mill | ||
| Highlight: | superfine powder air classifying mill,20kg capacity air classifying mill,foodstuf industry 1800kg classifier mill |
||
Foodstuf Industry 20 To 1800kg Per Hr Capacity Superfine Powder Air Classifier Mill

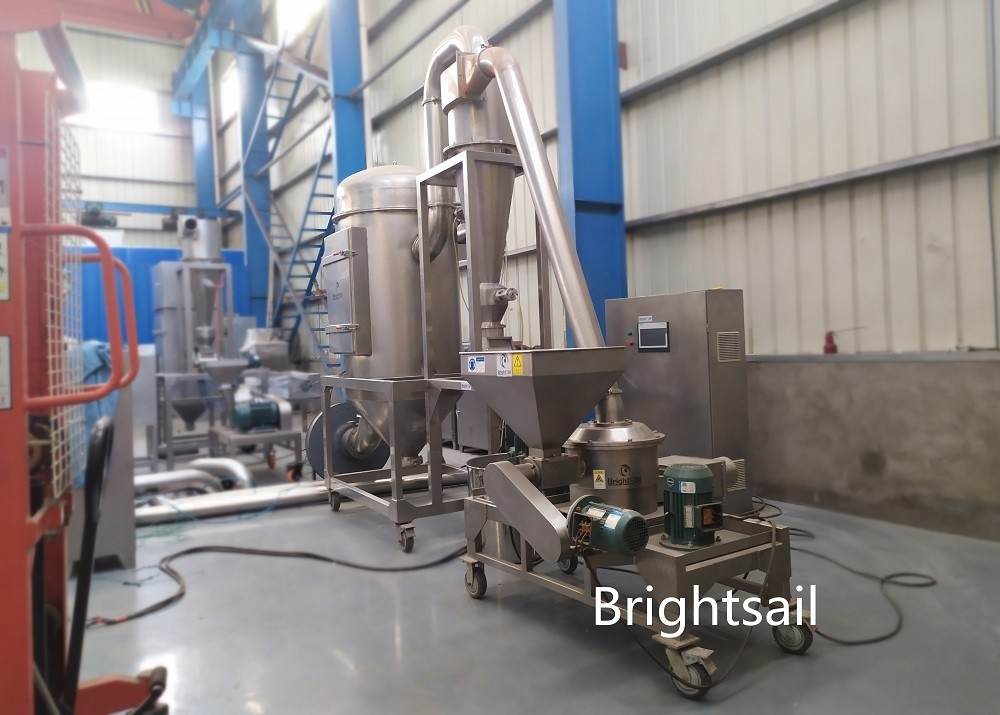

BSP superfine pulverizer is composed of pulverizer, cyclone separator, dust collector, blower, electric control box and other components. It has the functions of screening, no screening, no mesh, uniform particle size, continuous processing and so on. It has reached the international advanced level and is suitable for material crushing in medicine, chemical industry, food and other industries.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:
The raw material is sent to grinding room by spiral feeder through hopper, cut and cut by high-speed cutter, then sent to cyclone separator and bag filter by negative pressure suction. The flow is in line with product requirements. This is why the BSP ultrafine grinding machine can be made into ultrafine powder, which can be used as a fine grinding machine.
Main components:

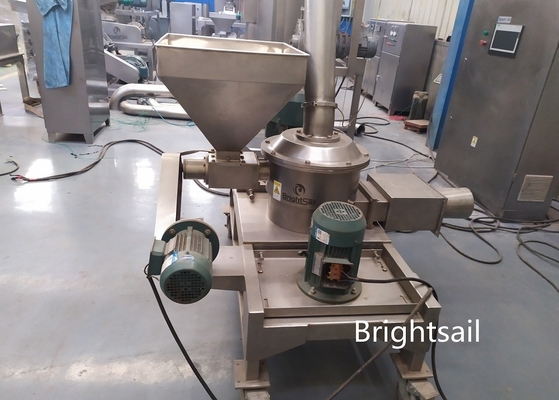

1. Crusher: The left motor is a crushing motor, and the right motor is a grading motor. Small screw feeder is used to ensure uniform and controllable feed speed.

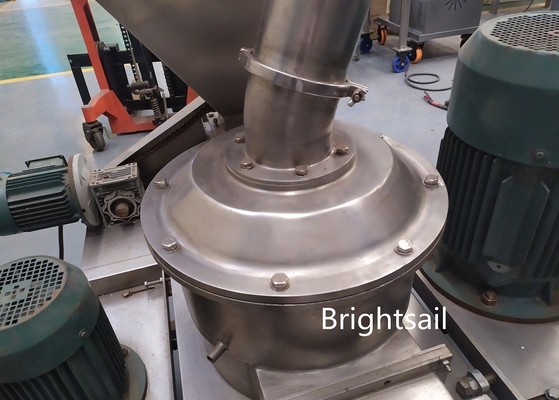

2. The material enters the grinding chamber through the screw conveyor, where it is cut and ground by the rapidly rotating blades. The powder enters the classification chamber through the guide ring.
3. Cyclone separator: The cyclone separator can separate dust (particles). The rotary valve makes the powder output speed even, and it is also made of stainless steel. Easy to clean and disassemble.
4. Pulse dust collector: dust removal inside the dust collector. There are many dust bags in the box, and the bag holder is also made of stainless steel, which is easy to disassemble. Pulse jet cleaning is used to facilitate dust removal.
Main features:
(1) the patented technology of the utility model has the advantages of simple structure, convenient installation and maintenance.
(2) adopt world-class and famous brand motors, electrical parts, bearings and operation parts.
(3) there is no dust in the production process, and the dust can be collected in the dust collecting box.
(4) without Sieving, the particle size can change with the velocity.
(5) cool the machine with a water-cooled sleeve around the grinding chamber and bearing.
How can I buy this machine?
First, discuss the details and prices of all machines with our salesperson.
Second, confirm the price and payment terms. Trade guarantee / tt / trusteeship / Western Union remittance, etc.
Thirdly, send us the purchase order, confirm our proforma invoice and arrange the deposit. Once we receive the deposit, we will arrange production.
Finally, once the machine is ready, please arrange the balance to us. After we receive the balance, we will arrange space booking and send the machine to you.
