Product Details:
|
| Product Name: | Dry Food Spice Grain Herb Powder Grinder Pulverizer Grinding Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800 Kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Voltage: | Customized |
| Highlight: | 600 mesh food powder machine,beverage industry sus food powder machine,2500 mesh coffee machine and grinder |
||
Beverage Industry 600-2500 Mesh Powder Fineness Coffee Grinders

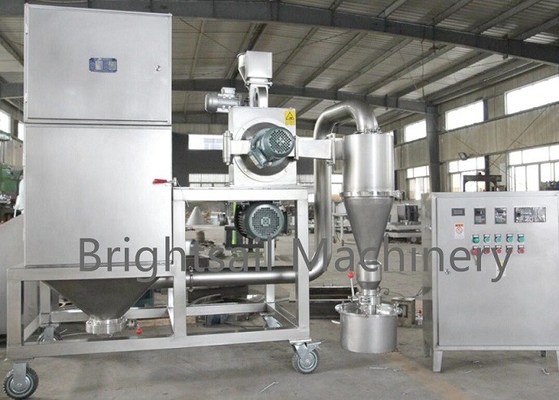

BSP superfine pulverizer is composed of pulverizer, cyclone separator, dust collector, blower, electric control box and other components. It has the functions of screening, no screen or net, uniform particle size, continuous processing and so on. It has reached the international advanced level and is suitable for material crushing in medicine, chemical industry, food and other industries.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:
The raw materials are sent to the grinding chamber through the hopper by the screw feeder, cut and sheared by the high-speed cutter, and sent to the cyclone separator and bag dust collector by negative pressure suction. The discharge meets the product requirements. This is why BSP superfine pulverizer can be made into superfine powder and can be used as fine powder pulverizer.
Main components:

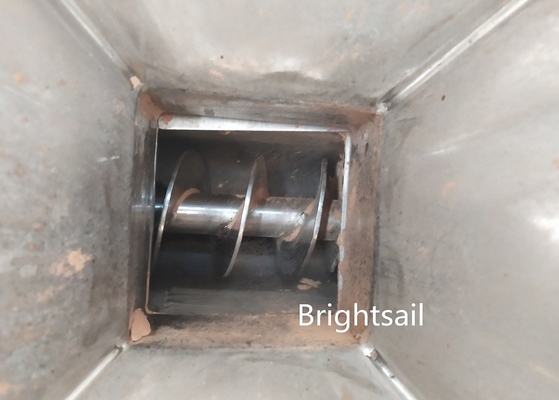

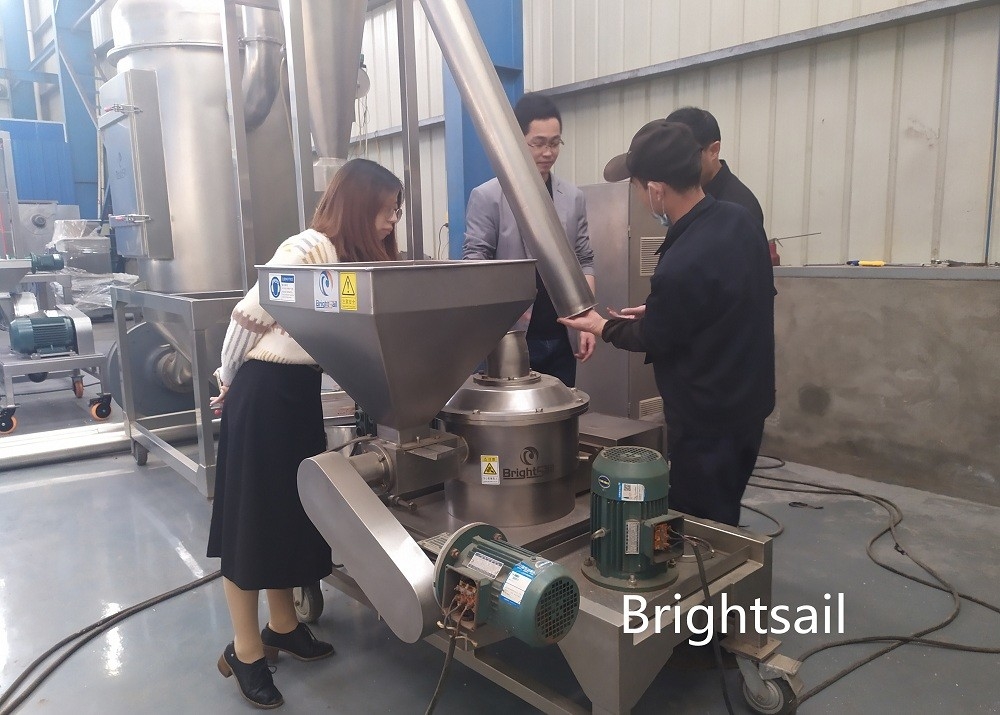

1. Crusher: the left motor is the crushing motor and the right motor is the grading motor. Small screw feeder is adopted to ensure uniform and controllable feed speed.
2. The material enters the grinding chamber through the screw conveyor, where it is cut and ground by the rapidly rotating blades. The powder enters the classification chamber through the guide ring.
3. Cyclone separator: the cyclone separator can separate dust (particles). The rotary valve makes the powder discharge speed uniform and is also made of stainless steel. Easy to clean and disassemble.
4. Pulse dust collector: dust removal is carried out inside the dust collector. There are many dust collection bags in the box, and the bag rack is also made of stainless steel, which is easy to disassemble. Using pulse jet cleaning, it is convenient to collect dust.
Main features:
(1)The utility model has the advantages of simple structure, convenient installation and maintenance.
(2) adopt the world advanced famous brand motor, electrical parts, bearings, operating parts.
(3) there is no dust in the production process, and the dust can be collected in the dust collecting box.
(4) No sieving required, particle size can be changed with speed.
(5) around the grinding chamber and bearing, a water cooled jacket is used to cool the machine.
Drawing:
