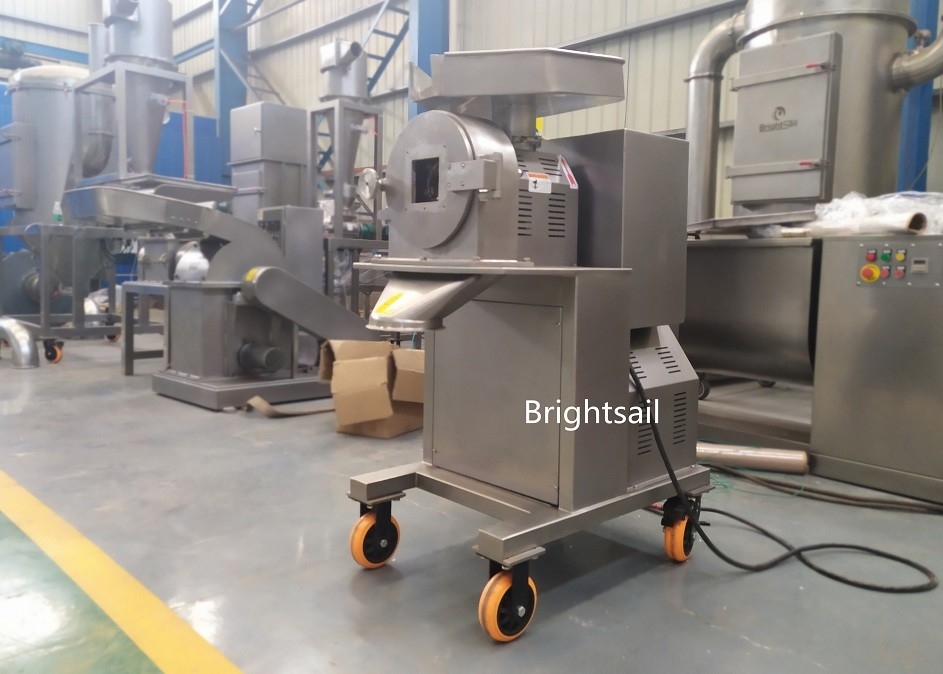

3 To 300kg Per Hr Capacity Customized Medicine Grinder Radix Liquiritiae Milling Machine
This type of BS high-speed hammer crusher is suitable for pharmaceutical, chemical, food and other industries. It is a good powder processing equipment. It is not limited by material hardness, softness and fiber viscosity, and can have good crushing effect on any material.
Technical data:
| Model |
BS-180 |
BS-250 |
BS-300 |
BS-350 |
| Feed size(mm) |
<10mm(granule)
<15*40*2(leaf)
|
<10mm(granule)
<15*40*2(leaf)
|
<10mm(granule)
<15*40*2(leaf)
|
<10mm(granule)
<15*40*2(leaf)
|
| Grind fineness(mesh) |
10-120 |
10-120 |
10-120 |
10-120 |
| Capacity(kg/h) |
3-50 |
10-100 |
20-200 |
30-300 |
| Grind chamber diameter(mm) |
200 |
270 |
330 |
380 |
| Rotor speed(rpm) |
5900/8600 |
4200/6200 |
2600/5100 |
2200/4400 |
| Motor(kw) |
2.2 |
5.5 |
7.5 |
11 |
| Overall size(L*W*H)(mm) |
840*470*1020 |
930*600*1200 |
1000*650*1500 |
1150*700*1600 |
| Weight(kg) |
112 |
210 |
296 |
430 |
Working method:

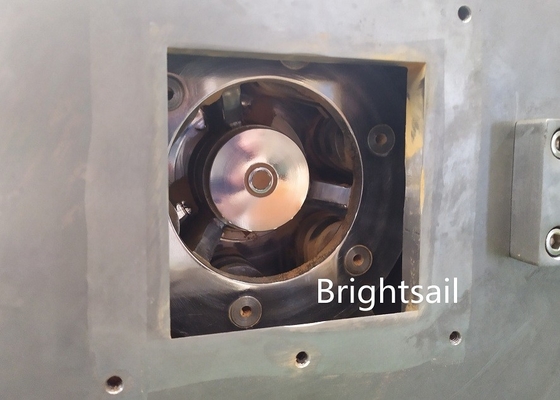

The machine is composed of frame, crushing chamber and feeding department. A movable cutter head is installed on the main shaft, a fixed ring gear is installed in the crushing cavity, and a screen is installed below the ring gear. When the spindle runs at high speed, the movable cutter head runs, and the materials are impacted and rubbed by the fixed ring teeth and the movable hammer. Under the combined action of shear, shear and impact between the materials, crushing is realized. The machine has the advantages of simple structure, firmness and durability, stable operation, obvious crushing effect and convenient maintenance. The crushed materials can be discharged directly from the crushing chamber of the host machine, and the particle size can be obtained by changing the screens with different pore sizes.
(the speed can also be adjusted to obtain the fineness of the finished product).
Main features:
1. Wide application range and large processing capacity.
2. Simple and compact structure; Smooth operation.
3. The material grinding process is fast and reliable, and the grinding degree is adjustable.
4. The surface of the multifunctional grinder is smooth and easy to clean.
