Industry Small Size Fast Grinding Speed 10mm Seaweed Processing Plant 300kg/H

Industry Small Size Fast Grinding Speed 10mm Seaweed Processing Plant 300kg/H
Industry Small Size Fast Grinding Speed 10mm Seaweed Processing Plant 300kg/H
Industry Small Size Fast Grinding Speed 10mm Seaweed Processing Plant 300kg/H Industry Small Size Fast Grinding Speed 10mm Seaweed Processing Plant 300kg/H Industry Small Size Fast Grinding Speed 10mm Seaweed Processing Plant 300kg/H Industry Small Size Fast Grinding Speed 10mm Seaweed Processing Plant 300kg/H

Large Image :  Industry Small Size Fast Grinding Speed 10mm Seaweed Processing Plant 300kg/H

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 25-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Contact Now

Industry Small Size Fast Grinding Speed 10mm Seaweed Processing Plant 300kg/H

Description
Product Name: Seaweed Processing Plant Application: Food,chemical,pharmaceutical,etc
Capacity: 3-300kg/h Fineness: 10-120 Mesh
Feed Size: <10 Mm Other Name: Seaweed Grinder
Advantage: High Rotarying Speed Of Gridning Another Name: Seamoss Machine
Highlight:

10mm seaweed processing plant

,

300kg/h seaweed processing plant

,

120 mesh seaweed processing plant

Industry Small Size Fast Grinding Speed Seaweed Processing Plant



Introduction:seaweed processing plant

This is our BS series high speed rotary hammer mill. It can be widely used in medicine, chemical industry, food and other industries. For spice grinding, the grinding effect is good, and most spice powder can reach 30 ~ 40 mesh. In addition to spices, it can also be used to grind dry leaves, chickpeas, sugar and many other materials.


Technical data:seaweed processing plant

Model BS-180 BS-250 BS-300 BS-350
Feed size(mm)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)
Grind fineness(mesh) 10-120 10-120 10-120 10-120
Capacity(kg/h) 3-50 10-100 20-200 30-300
Grind chamber diameter(mm) 200 270 330 380
Rotor speed(rpm) 5900/8600 4200/6200 2600/5100 2200/4400
Motor(kw) 2.2 5.5 7.5 11
Overall size(L*W*H)(mm) 840*470*1020 930*600*1200 1000*650*1500 1150*700*1600
Weight(kg) 112 210 296 430



Working method:seaweed processing plant

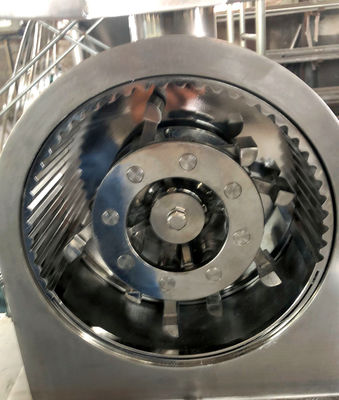

The aircraft consists of a rack, a crushing chamber and a feed section. Install the moving head on the spindle, the fixed ring teeth in the broken cavity, and the screen under the ring teeth. When the spindle is running at high speed, the moving head is running and the material is subjected to the impact and friction of the fixed ring teeth and the moving hammer. Under the combined action of shear, shear and impact, the breakage is achieved. The machine structure is simple, durable, stable operation, obvious crushing effect, easy to repair. The crushed material can be discharged directly from the host's crushing chamber, and the granularity can be obtained by changing the sieve of different apertures. (Speed adjustable to obtain the fineness of the finished product)


Main features:seaweed processing plant

1. Wide Range of application, large processing capacity.
2. A compact structure; a stable operation.
3. The material lapping process is fast and reliable, and the lapping degree is adjustable.
4. The surface of multi-function grinder is clean and easy to clean.

Industry Small Size Fast Grinding Speed 10mm Seaweed Processing Plant 300kg/H 0



Crushing Effect:seaweed processing plant

Industry Small Size Fast Grinding Speed 10mm Seaweed Processing Plant 300kg/H 1

Tag:

grain grinder machine,

spice making machine,

hammer pulverizer machine
