Product Details:
|
| Product Name: | Licorice Pulverizer Mill | Material: | SS304/316 |
|---|---|---|---|
| Feed Size: | <100mm | Output Size: | 0.5-20mm |
| Capacity: | 50-1000 Kg/h | Other Name: | Licorice Machine |
| Function: | Primary Mill | ||
| Highlight: | 20mm powder crusher machine,0.5mm powder crusher machine,powder crusher machine making licorice |
||

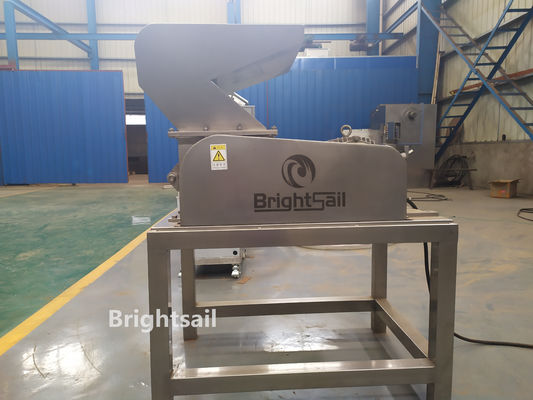

0.5 To 20 Mm Crushing Fineness Small Granules Making Licorice Pulverizer Mill
Product Introducton:licorice pulverizer mill
BSC coarse crusher is mainly used to crush large-size materials into small pieces (0.5-20mm). It is widely used in medicine, food, chemical industry, metal, herbal medicine, agriculture and other fields. Such as spices, Chinese herbal medicine, roots, tea, grains, etc.
Working method:licorice pulverizer mill
The materials enter the crushing chamber through the hopper, are crushed by the cutting and impact of fixed and rotating tools, and automatically flow into the outlet under the action of rotating centrifugal force.
Main features:licorice pulverizer mill

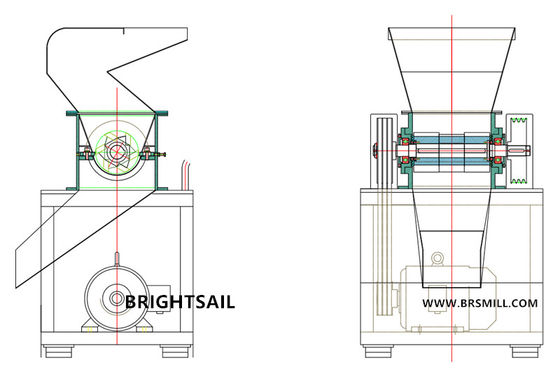

1. The machine is composed of frame, motor, feeding hopper and crushing chamber. The particle size is changed by changing the screen.
2. The machine has beautiful appearance, coordinated color matching and good stability of paint coating.

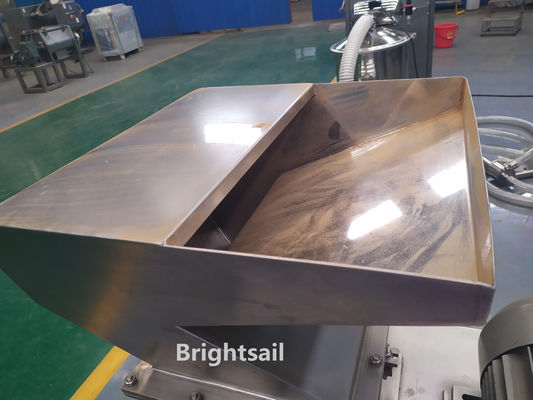

3. The structure of feed hopper, crushing chamber and funnel is of separate design, which is convenient for installation and disassembly.
4. The knife adopts imported high-quality tool steel, which can be sharpened for multiple purposes and has long service life.
5. Solid structure, convenient operation and low power consumption. 6. The motor is equipped with overload protection device and power chain protection system.
Technical data:licorice pulverizer mill
|
Model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
|
Size of input granules (mm)
|
<100
|
<100
|
<100
|
<100
|
|
Crushing Fineness(mm)
|
0.5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960 |
960
|
960
|
960
|
|
Motor power(KW)
|
3
|
5.5
|
7.5
|
11
|
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140
|
900*700*1440
|
900*800*1440 |
1000*900*1440
|
|
Weight(Kg)
|
200
|
300
|
380
|
500
|
Good commenr from customer:licorice pulverizer mill
Crushing Effect:licorice pulverizer mill
