Product Details:
|
| Product Name: | Dried Moringa Leaf Grinding Mill | Input Size: | <15mm |
|---|---|---|---|
| Capacity: | 20-1800 Kg/h | Pre-slae Service: | Provide |
| Fineness: | 60-2500 Mesh | Crusher Motor: | 11-75 Kw |
| Other Name: | Moringa Leaf Powder Making Machine | Advantage: | No Need Screen |
| Highlight: | powder grinder machine 20kg/h,dried moringa grinding machine,input 15mm powder grinder machine |
||
60 To 2500mesh Fineness 20 To 1800kg Per Hour Capacity Dried Moringa Leaf Grinding Mill
Main usage:Dried Moringa Leaf Grinding Mill
The dried moringa leaf grinding machine consists of main motor, auxiliary motor and electrical control cabinet, with screening, no screening, uniform particle size, continuous processing and other functions. In line with the international advanced level, suitable for medicine, chemical industry, food and other industries of material grinding.This type of moringa leaf powder machine is suitable for superfine powder making.
Technical data:Dried Moringa Leaf Grinding Mill
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:Dried Moringa Leaf Grinding Mill
The raw materials are sent to the grinding chamber by the spiral feeder through the hopper, cut and cut by the high-speed cutting machine, and then enter into the cyclone separator and bag filter by the negative pressure dust suction method. This is why it can be used to make ultra-fine powders which can be used for fine grinding (fine grinding)
Advantages:Dried Moringa Leaf Grinding Mill
1. The design is compact and the structure is reasonable. A grading mechanism is arranged inside the material, so that the grinding and grading can be carried out at the same time and the energy consumption is reduced.
2. This machine is equipped with fan for continuous heat dissipation, suitable for grinding of heat sensitive materials.
3. Strong adaptability and narrow particle size distribution. Product granularity is even, fineness can reach 80-320 Mesh.
4. The product with uniform particle size distribution can be obtained by adjusting the speed or air volume of the classifier without stopping the machine.
5. The top cover of the main engine is opened by a pneumatic spring. The structure of the main body can be opened on both sides so that there are no obstructions when cleaning and repairing the internal parts.
6. The main grinding parts used high-grade alloy tool steel, greatly extended the wear parts of the service life or replacement cycle.
7. The bearing system adopts imported high-speed precision bearing, the whole machine runs smoothly with low vibration and low noise.
8. The pipeline has the quick disassembly structure, the disassembly, the cleaning is convenient and quick.
9. Equipped with cyclone separator and dust collector, the production process does not produce dust. The dust collecting bag can effectively collect fine powder in the airflow, thereby meeting the clean and environmental protection requirements of exhaust gas emission.
10. The fine powder collected by the bag can be effectively recycled. To reduce material loss.
Grinding effect:Dried Moringa Leaf Grinding Mill

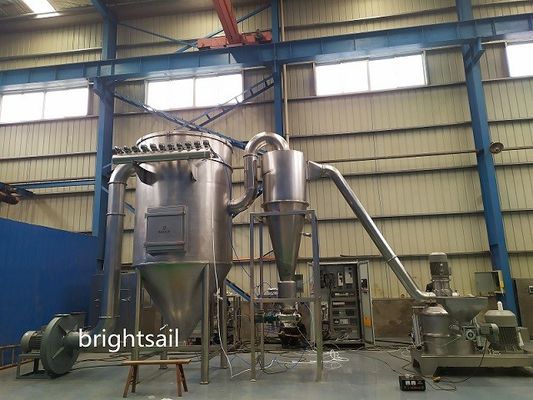

Detailed images:Dried Moringa Leaf Grinding Mill
