Product Details:
|
| Product Name: | Round Bottle Labeling Machine | Other Name: | Beer Bottle Labels Machine |
|---|---|---|---|
| Applicable Label Inner Diameter: | φ76mm | Applicable Label Roll Outer Diameter: | Maximum Φ 250mm |
| Application: | Round Bottle, Can, Cylinder | Packaging: | Wooden Case Or Container |
| Advantage: | Small And Easy | ||
| Highlight: | 40pcs semi automatic round bottle labeling machine,76mm Semi Automatic Round Bottle Labeling Machine,desktop semi automatic round bottle labeling machine |
||
10 To 40 Pieces Per Min ±0.5mm Labeling Accuracy Round Bottle Labeling Machine

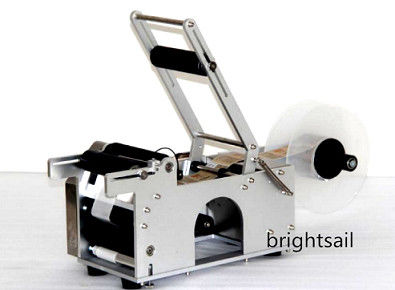

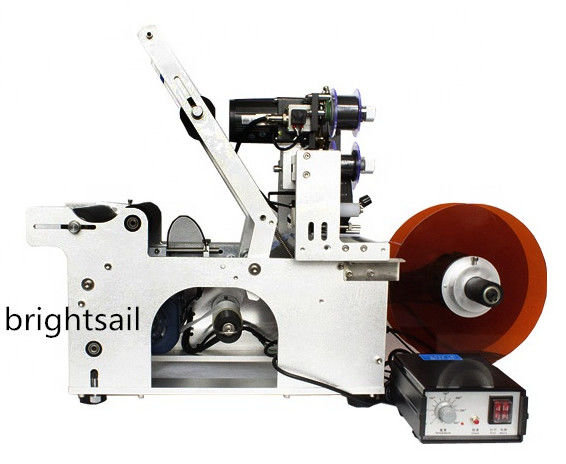

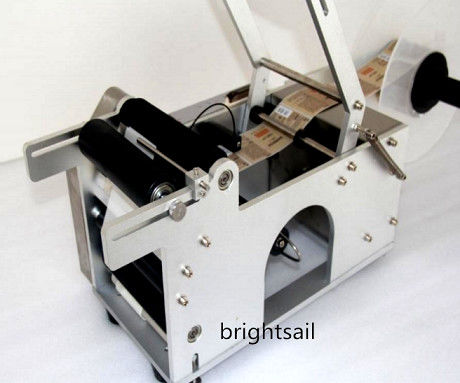

Introduction:round bottle labeling machine
XT-50 labeling machine bottle, low power consumption, small space occupation. Ribbon encoder is a desktop semi-automatic machine, the work efficiency is greatly improved. With motor and limit switch touch control, small volume, can be used with vertical filling and packaging machine.
Application:round bottle labeling machine
1.Suitable for all kinds of cylindrical objects labeling, small taper round bottle labeling, such as xylitol, cosmetics round bottles, wine bottles and so on. Can achieve full week / half weeks labeling, front and back labeling circumference is back standard spacing can be adjusted. Widely used in food, cosmetics, chemical, pharmaceutical and other industries.
Technical Data:round bottle labeling machine
|
Model/Technical Parameters
|
XT-50
|
|
Labeling speed
|
10-40 pieces / min (related to material and label size)
|
|
Labeling accuracy
|
±0.5mm(excluding material and label size)
|
|
Material size
|
external diameter φ 20- φ 100 mm；
high 30-200 mm200mm
|
|
Applicable label inner diameter
|
φ76mm
|
|
Applicable label roll outer diameter
|
maximum Φ 250mm
|
|
Using electricity
|
AC220V 50Hz/60Hz 120W
|
|
Overall dimensions
|
(L)650 (W)350 (H)550mm
|
Features:round bottle labeling machine
1. Desktop design, simple structure, compact appearance, powerful function.
2. The use of anodized aluminum alloy bracket and advanced computer white box, beautiful and generous.
3. Using advanced electric eye, it has high detection sensitivity for target and label.
4. Wide range of application, can be used for 20-100 mm label roller.
5. The labeling accuracy is high, and the head and tail joint deviation of the label is 0.5 mm. Intelligent extrusion device is used for feeding, only the workpiece needs to be placed, and the labeling can be completed automatically.
6. Adjust the card position to facilitate switching and labeling between different parts.
7. Adopt synchronous belt traction, greatly improve the mechanical stability.
