Product Details:
|
| Production Speed: | Wet Mixing Granulator | Metering Method: | Volumetric Method |
|---|---|---|---|
| Work Volume: | About 12-400L | Other Name: | Rapid Mixer Granulator |
| Advantage: | High-efficiency | Material: | SS304 |
| Highlight: | Mixing Wet Granulation Equipment,220L Wet Granulation Equipment,V Shaped Pelletizing Knife Wet Granulator |
||
Work volume about 12 to 400L Wet Mixing Granulator
Description:
The high-efficiency wet granulator is a special equipment for wet mixing and granulation of powder, starch, and adhesive in the production of tablets in the pharmaceutical industry. It is also suitable for mixing and granulating powdered materials in food and chemical industries.
Work process:
Adhesive high-speed cutting
Powder-----Dry blending---Wet blending---Uniform wet granules---discharging
Technical Data:
| Model/Specification | BSSF-50 | BSSF-100 | BSSF-200 | BSSF-300 | BSSF-400 | BSSF-600 |
| Total volume (L) | 50 | 100 | 200 | 300 | 400 | 600 |
| Working volume (L) | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-400 |
| Feeding amount (kg) The specific gravity of powder is 0.5g/cm³ | 6-18 | 12-35 | 25-75 | 30-110 | 50-140 | 75-200 |
| Rotating speed of stirring paddle (r.p.m) | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-200 |
| Stirring power (kw) | 5.5 | 7.5 | 15 | 22 | 22 | 30 |
| Cutting knife speed (r.p.m) | 50-3000 | |||||
| Cutting power (kw) | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 |

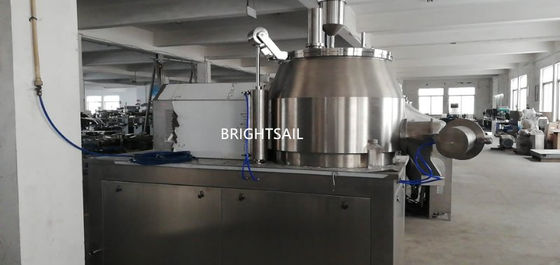

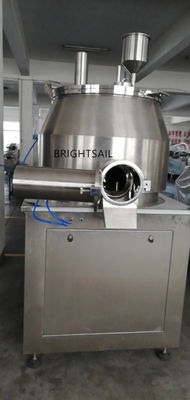

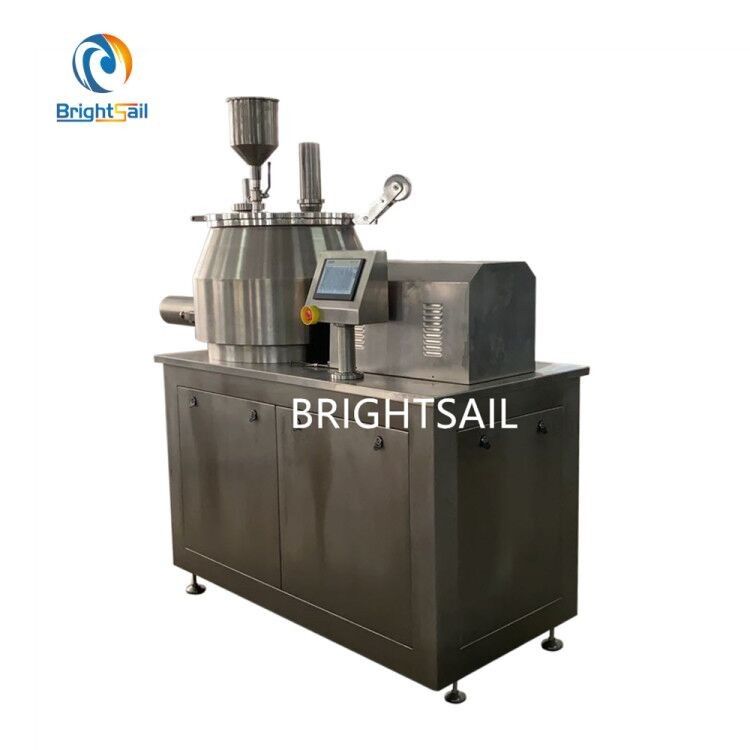

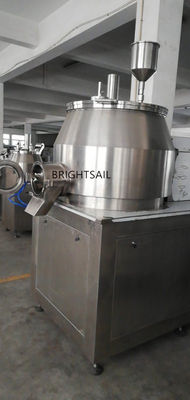

Detailed Images :
Features :
1: The main barrel adopts a cylindrical and conical tangent structure, which is helpful for the tumbling of the material, and thegeometric angle of the stirring blade and the pelletizing knife is designed reasonably to ensure the best effect of mixing andgranulating.
2: PLC control man-machine interface, automatic adjustment control according to program, high degree of automation, easy operation
3: Both the stirring blade and the cutting knife adopt frequency conversion speed regulation, and the speed can be adjusted
arbitrarily, which can meet the granulation requirements of different varieties.
4: The whole process completes dry mixing and wet mixing granulation in the same closed container. Compared with the traditional process, the binder is reduced by 25%, and the drying time is shortened.
5: V-shaped pelletizing knife, there is no dead angle between the knife and the knife, which can improve the granulation rate and the rate of pellets.
