Product Details:
|
| Product Name: | Spice Grinding Machine | Application: | Herb,rice,leaf,spice, |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-3000kg/h |
| Input Size: | <15mm | Fineness: | 60-2500 Mesh |
| Voltage: | Customized | Other Name: | Ginger Powder Making Machine |
| Highlight: | 1000kg/hr ginger powder making machine,10kg/hr ginger powder making machine,60mesh ginger powder making machine |
||
10-1000kg per Hr ginger powder making machine
turmeric grinding machine cinnamon processing machineturmeric grinding machine cinnamon processing machine
1.Preliminary coarse crushing before fine crushing- BSC Series Coarse Crusher(can make 0.5 to 20 mm granule)
It is used as specialized equipment for coarse crushing of materials in preparatory process, and crush hard and tough materials like plastics, rubber, etc. Especilally, it is not limited by viscosity, hardn ess, softness and fiber shape of material and has good effectt to all materials.
Technical data:
| Model |
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300 | 100-800 | 200-1000 | 500-1500 |
|
Size of input granules (mm)
|
<100 | <100 | <100 | <100 |
|
Crushing Fineness(mm)
|
0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960
|
960 | 960 | 960 |
|
Motor power(KW)
|
3 | 5.5 | 7.5 | 11 |
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
|
Weight(Kg)
|
200 | 300 | 380 | 500 |

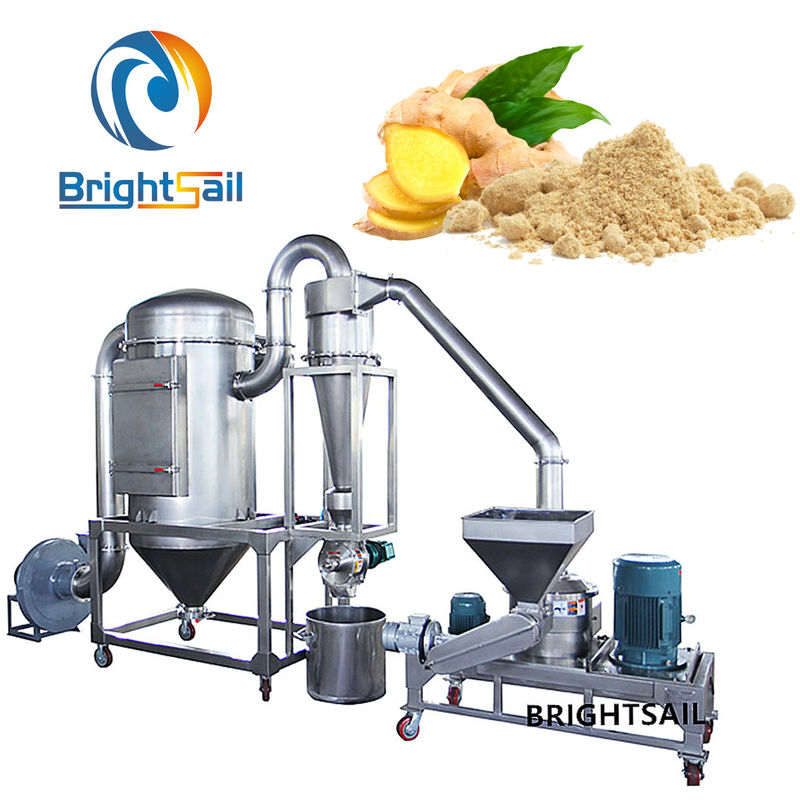

2.low oil spices and for superfine powder making- BSP Air classifier Mill (can make 40 to 320 mesh powder)

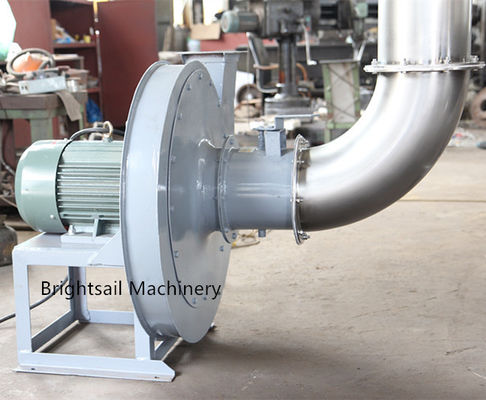

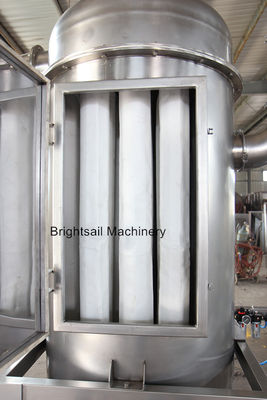

BSP powder machine by the crusher, cyclone separator, dust remover, Fan, electrical control box and other components.
With the ability of selection, screening, uniform particle size, continuous processing.
After the superfine grinder is connected to the feeding machine, it can realize the process of fully automatic integration from feeding, crushing and discharging. On the one hand, it can reduce labor costs, and on the other hand, it is more hygienic, safe and efficient, especially suitable for large-scale condiments Production factories and flour mills, etc.
turmeric grinding machine cinnamon processing machineturmeric grinding machine cinnamon processing machine
turmeric grinding machine cinnamon processing machineturmeric grinding machine cinnamon processing machine
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Application:
spices,chilli,herbal,turmeric,ginger,coco beans,chickpea,rosehip...etc.
