Product Details:
|
| Warranty: | One Year | Capacity: | 3-300 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Feed Size: | <10mm |
| Material: | SS 304/316 | Voltage: | Customized |
| Product Name: | Turmeric Powder Making Machine | ||
| Highlight: | 300kg/h turmeric powder making machine,3kg/h turmeric powder making machine,10mm turmeric powder making machine |
||

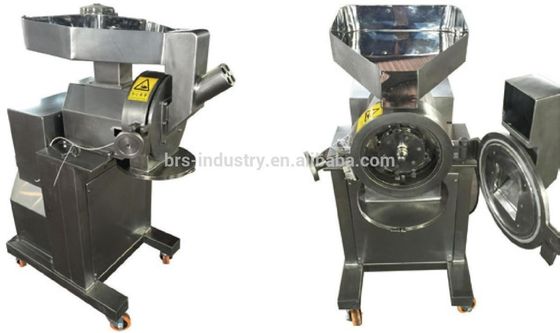

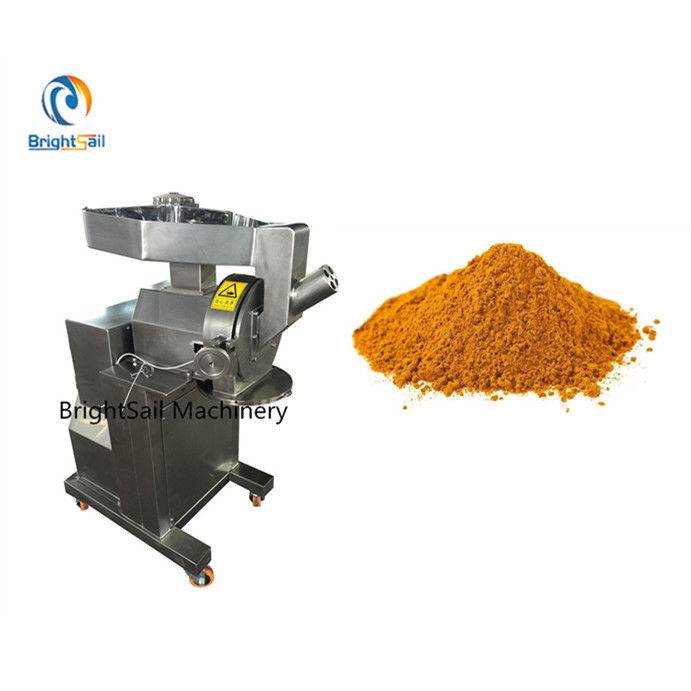

Capacity 3-300 kg per hr Fineness 10-120 mesh turmeric powder making machine
Description:
This is the smallest grinder machine,also one of the best selling products in our company.It can grind many kinds of materials,such as spices,moringa leaves,date seeds,chickpea,dry flowers,turmeric...etc.
turmeric powder making machineturmeric powder making machineturmeric powder making machineturmeric powder making machine
Working method:
This machine consists of three parts: frame, rolling mill cavity and feed part. There is a movable cutter head on the spindle. A fixed ring gear is installed in the grinding chamber. Under the ring gear, there is a strainer. When the spindle works at high speed, the movable cutter head runs together. The material is impacted, rubbed, and cut by the fixed ring gear and movable hammer. The materials also collide with each other. Under the combined effect, they are crushed into powder. The machine has simple structure, stable operation and convenient maintenance. It also has a good effect on abrasive materials.
turmeric powder making machineturmeric powder making machineturmeric powder making machineturmeric powder making machine
Main features:
1. Simple in structure, few occupied space
2. Easy to clean, easy to operate
3. Pulleys are installed at the bottom of the machine, easy to move
4. Changing powder size by changing difference size of sieve mesh
turmeric powder making machineturmeric powder making machineturmeric powder making machineturmeric powder making machine
Our service:
1) Professional advice and rich experience help to choose machine.
2) Any problem before or after delivery, you could find and talk with us anytime.
3) Related technical information,including operation manual, electric diagram
4) According to customers' requirement, we can provide installation and employees' training service
turmeric powder making machineturmeric powder making machineturmeric powder making machineturmeric powder making machine
Technical data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
turmeric powder making machineturmeric powder making machineturmeric powder making machineturmeric powder making machine
Application:
spices,chilli,herbal,turmeric,ginger,coco beans,chickpea,rosehip,turmeric...etc.
turmeric powder making machineturmeric powder making machineturmeric powder making machineturmeric powder making machine

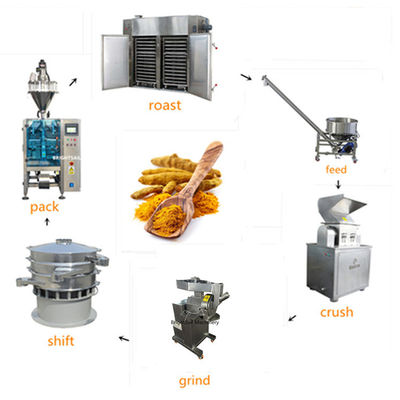

Processing machine:
We Can Provide You With All The Machines Involved In The Above Production Process,If You Want,Please Contace Us ...
