Product Details:
|
| Product Name: | Red Chili Grinding Machine | Material: | SS304/316 |
|---|---|---|---|
| Warranty: | One Year | Feed Size: | <100mm |
| Output Size: | 0.5-20mm | Capacity: | 50-1000kg/h |
| Another Name: | Coarse Crusher | Applicable Materials: | Spice,chili,tea Leaf |
| Highlight: | 20mm red chili powder grinding machine,20mm red chilli grinding machine,SS304 Red Chili Powder Grinding Machine |
||

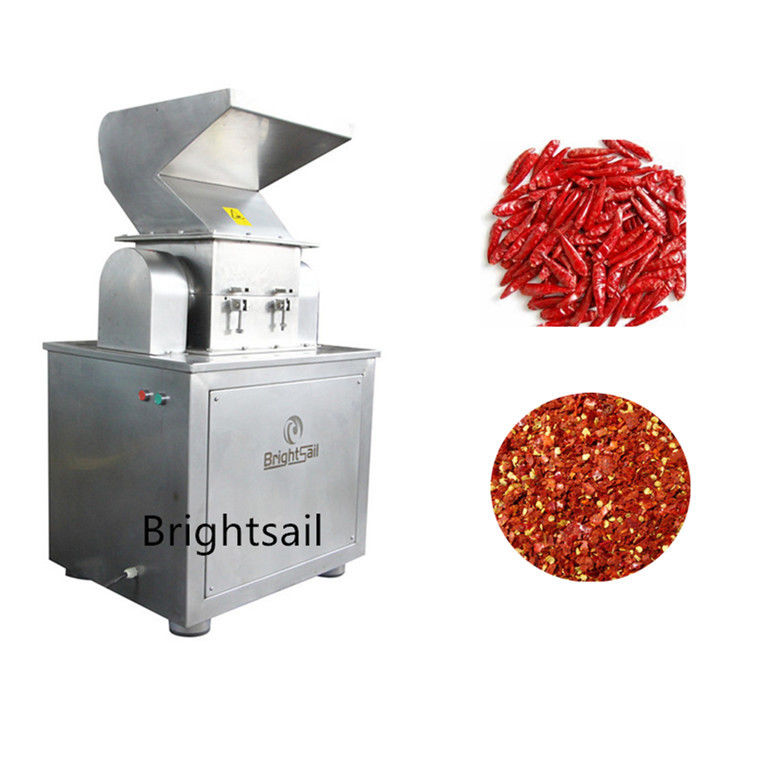

Output size 0.5 To 20mm Crushing Fineness Red Chili Powder Grinding Machine
Introduction :
BSC is widely used in pharmaceutical, chemical, food and other industries on dry, fragile crushing materials. Low softening point, high viscosity material is not suitable for the use of this machine.
BSC is suitable for granulating or primary grinding (making large materials into small particles) , such as pepper tablets, ginger granules, gum Arabic, dry flakes, etc. . There are two types for you to choose, one is vertical (the discharge port is behind the machine) , the other is desktop (the discharge port is under the machine) .
Working Method :

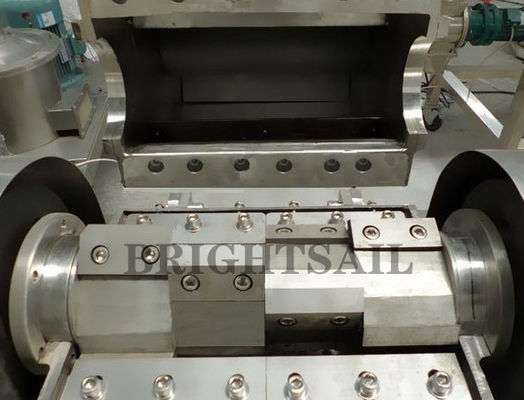

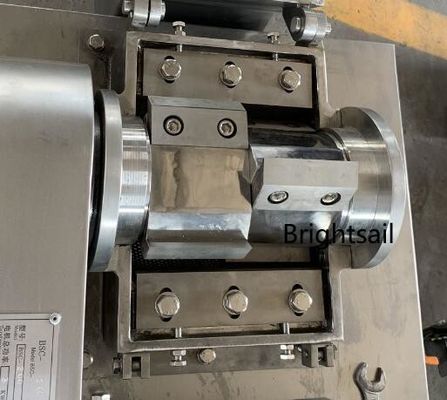

The spice pulverizer is a horizontal grinder used to cut large pieces of material into small pieces. There is a counter wheel at the end of the shaft, which will not block during operation. The raw material is injected into the hopper, and the rotating blades are fixed to crush and cut in the crushing cavity. By rotating centrifugal force, the material automatically flows to the outlet. The size of the final product is controlled by the screen. The blades are made of durable alloy steel.
Main Features :
(1) simple structure, easy installation and maintenance.
(2) clean and convenient, low noise.
(3) stable operation, good wear resistance.
(4) pneumatic components, electrical components, operating components are world-famous brands.
Technical Data :
|
Model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
|
Size of input granules (mm)
|
<100
|
<100
|
<100
|
<100
|
|
Crushing Fineness(mm)
|
0.5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960
|
960
|
960
|
960
|
|
Motor power(KW)
|
3
|
5.5
|
7.5
|
11
|
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140
|
900*700*1440
|
900*800*1440 |
1000*900*1440
|
|
Weight(Kg)
|
200
|
300
|
380
|
500
|
Good Comment From Customer of Red Chili Powder Grinding Machine:
Our coarse crusher is usually used in the first step of material crushing. If you have different requirements for fineness output, we also have more types of grinding machines to recommend to you...
