Product Details:
|
| Product Name: | Smart Herb Grinder | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75kw | Voltage: | Customized |
| Highlight: | 1000kg/H herb powder machine,10kg/H herb powder machine,15mm Herb Powder Machine |
||
10-1000kg/hr industrial use herb powder grinding mill herb powder machine
Three types of machines:
1.BSP ultra-fine pulverizer set
Suitable for grinding oil-containing spices and other materials, such as rice, herbs, seaweed...Fineness up to 2500 mesh
BSP herbal powder machine by the crusher, cyclone separator, dust remover, Fan, electrical control box and other components. With the ability of selection, screening, uniform particle size, continuous processing. Applicable to pharmaceutical and chemical industry, industrial raw material crushing, food industry and other industries.

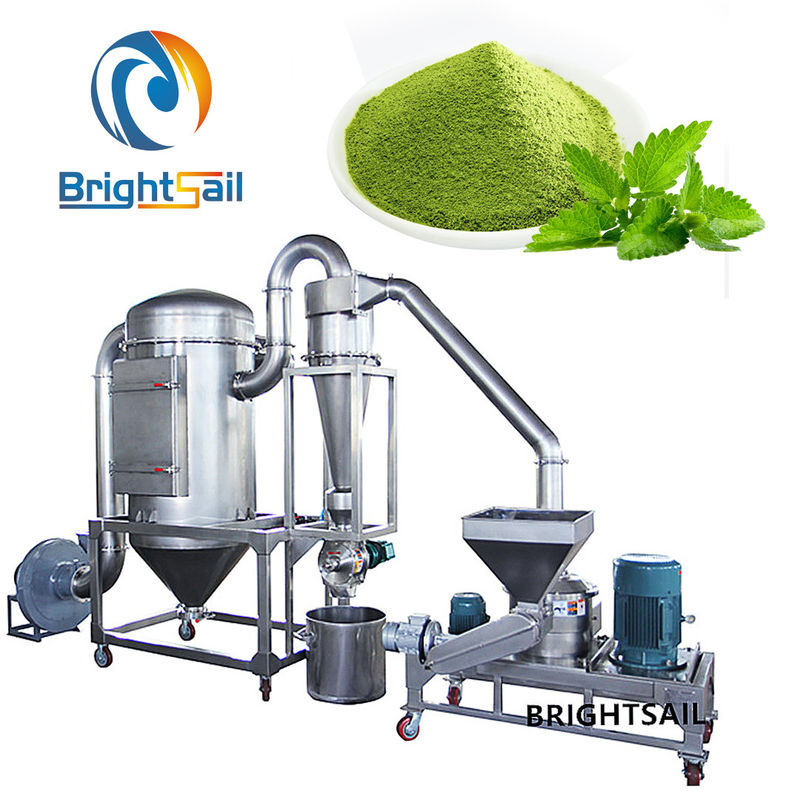

Main picture:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
2.BS series spice pulverizer set
Suitable for crushing herb and other spices, small output, crushing fineness between 12-60 mesh
BS series spice pulverizer set is composed of three parts: frame, mill and feeding.During its working process,Material is smashed by the cutting and grinding of high speed knives.Knife of type can be selected according to different material and size of granules.

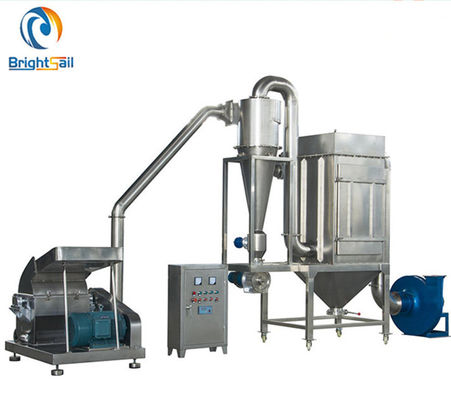

Main picture:
Technical data:
| Model | BS-400 | BS-630 | BS-880 | BS-1000 |
| Capacity(kg/h) | 80-1200 | 400-1800 | 800-2500 | 1000-3000 |
| Fineness(mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
| Main crush motor(kw) | 22 | 37 | 45 | 55 |
| Overall size(L*W*H)(mm) | 5400*1300*2700 | 6800*1300*2700 | 7800*1800*3200 |
8800*2000*3300 |
3.BS small hammer mill
Suitable for small production of herb and other spices,most spice powder can reach 30~40mesh. Except spice, it also can be used to grind dry leaf, chickpeas, sugar and many other materials.
The machine is composed of three parts: frame, mill and feeding.During its working process,Material is smashed by the cutting and grinding of high speed knives.Knife of type can be selected according to different material and size of granules.

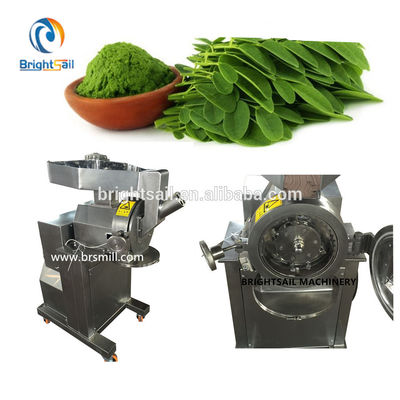

Main picture:
Technical data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
Application:
spices,chilli,herbal,turmeric,ginger,coco beans,chickpea,rosehip...etc.
Our Company:
Brightsail Industrial Group Co. , Ltd. is the Trading Department of Brightsail Machinery Co. , Ltd. and Jiangyin Hengsheng Steel Structure Co. , Ltd. . It was established in 2002. We provide professional powder processing integrated solutions, grinding machines, mixers, sieves, welding services, welding machines, chemical powder... after 15 years of development and accumulation, our company has become one of the most influential equipment manufacturers. Willing to grow and develop together with new and old customers.
