Product Details:
|
| Product Name: | Smart Herb Grinder | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75kw | Voltage: | Customized |
| Highlight: | Ss316 Spice Grinder Machine,75kw Spice Grinder Machine,ss316 spice grinding machine |
||
Hot Selling Herb And Spice Grinder For Industry

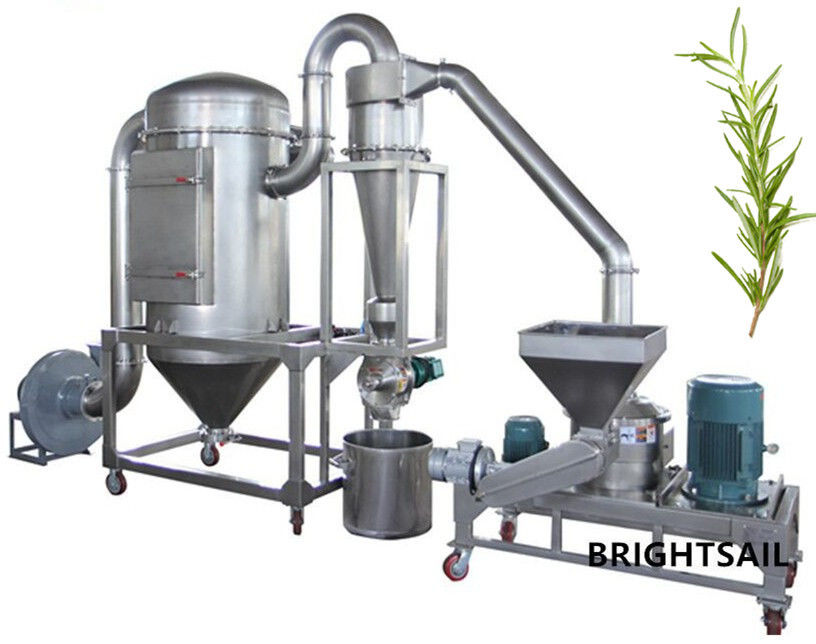

BSP herb pulverize machine is made up of three parts:main machine,auxiliary machine and electric control box. BSP grinding machine has the properties of wind selection,having no sieve or net,and an even granularity of the processed material.
The production process going on continuously,the machine can undertake the grinding of chemical products.food medcine,medicament,cosmetics,plastic,dyestuff, resin,grain,etc.
Working Method:
The raw materials are fed into the grinding cavity by a screw feeder, and after being cut and cut by a high-speed cutting machine, the raw materials are sent to the cyclone separator and the bag filter by the negative pressure adsorption method, and the discharge meets the product requirements.This herb processing machine is very suitable for making super-fine powder.
Main components:
(1) The left motor is a crushing motor, and the right motor is a grading motor. Small screw feeder is used to ensure uniform and controllable feeding speed.
(2) The material enters the mill chamber through the screw conveyor, and is sheared and milled by the rapidly rotating blade. The powder enters the classification chamber through the guide ring.
(3) The rotary valve makes the powder output speed even, and the rotary valve is also made of stainless steel, which is easy to clean and disassemble.
(4) Dust is collected in the dust box.
Main features:
(1) simple structure, easy to install and maintain.
(2) the mill is surrounded by a water-cooled sleeve and a bearing cooler.
(3) there is no dust in the production process, dust can be collected in the dust removal box.
4) the particle size can be changed by changing the velocity without sieving, and the powder particles are uniform.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
