Product Details:
|
| Product Name: | Herb Cutting Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75kw | Voltage: | Customized |
| Highlight: | 60mesh herbal powder machine,sus316 herbal powder machine,1800kg/h herbal powder machine |
||

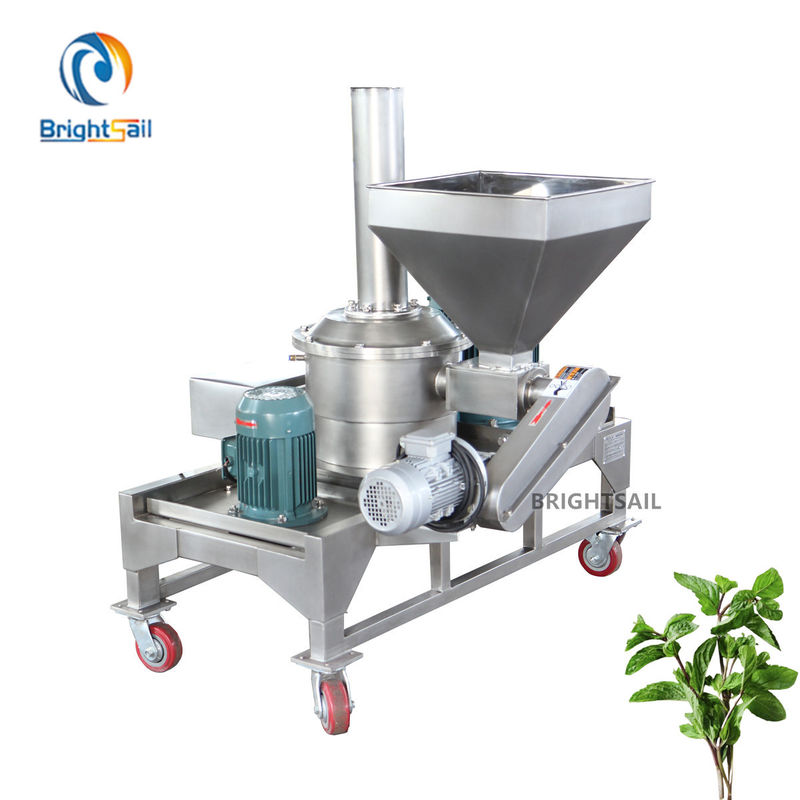

60-2500 Mesh Herb Cutting Machine For Industry
BSP commercial herb grinder consists of crusher, cyclone separator, dust collector, fan, electrical control box, etc. It has the ability of selection, no screening, uniform particle size, and continuous processing. In line with the international advanced level, it is suitable for the pharmaceutical and chemical, industrial material crushing, food and other industries.
Working Method:
The raw materials are conveyed to the grinding chamber through the screw feeder through the hopper, and after being cut by the high-speed cutting machine, they are sucked into the cyclone separator and the bag filter through the negative pressure. Therefore, the BSP automatic herb grinder can produce ultra-fine powder and can be used as a fine powder grinder.
Main Components:
1. Pulse dust box: Collect dust in the dust box. There are multiple dust bags in the box, and the bag holder is also made of stainless steel for easy disassembly. Using pulse jet cleaning, dust removal is very convenient.
2. Crusher part: The left motor is a crushing motor, and the right motor is a grading motor. Small screw feeder is used to ensure uniform and
3. Cyclone part: The cyclone separator can separate dust and powder (particles). The rotary valve makes the powder output speed even, and is made of stainless steel. Easy to clean and disassemble.
Main Features:
(1) simple structure, easy installation and maintenance.
(2) there is a water cooled sleeve around the grinding chamber, where the bearings cool the machine.
(3) motors, electrical appliances, bearings and operating components adopt world-class brands.
(4) there is no dust in the production process, dust can be collected in the dust removal box.
(5) without Sieving, the particle size can be changed by changing the speed, and the powder particles are uniform.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
