Product Details:
|
| Product Name: | Herb Powder Grinding Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Voltage: | Customized |
| Highlight: | 15mm herbs grinding machine,ss304 herbs grinding machine,20kg/h Herbal Medicine Machinery |
||
Multifunctional Herbs Grinding Machine Herbal Medicine Highly Automated Machinery

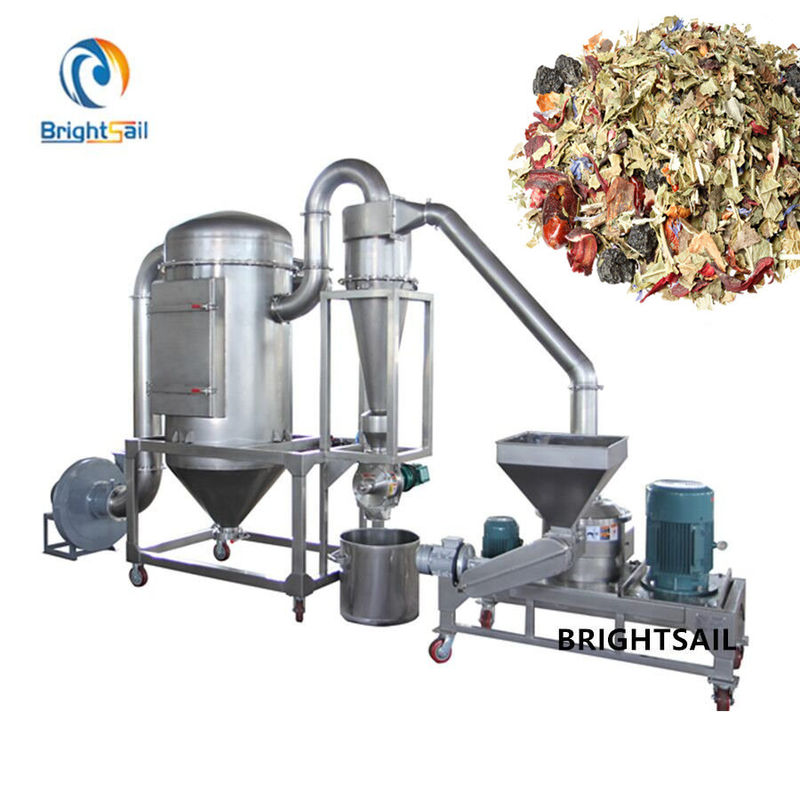

BSP grinders herb electric is composed of crusher, cyclone separator, dust collector, fan, electrical control box, etc. It has the functions of dust selection, no screen, no net, uniform particle size and continuous processing. In line with the international advanced level, it is suitable for grinding materials in pharmaceutical, chemical and food industries.
Main Components:
(1) The left motor is pulverizing motor and the right motor is grading motor. Small screw feeder is adopted to ensure the uniform and controllable feeding speed.
(2) The material enters into the grinding chamber through a screw conveyor, which is sheared and grinded by a fast rotating blade. The powder enters the grading chamber through the guide ring.
(3) The rotary valve makes the powder discharge speed uniform. The rotary valve is also made of stainless steel, which is easy to clean and disassemble.
(4) Dust is collected in the dust collecting box.
Main Features:
(1) simple structure, easy to install and maintain.
(2) there is a water-cooled sleeve around the mill, and the bearings cool the machine.
(3) motor, electric appliance, bearing and operation parts adopt world advanced brand.
(4) there is no dust in the production process, and the dust can be collected in the dust box.
(5) the granularity can be changed without changing the sieving speed.
Drawing:
Technical Data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
How Can I Buy This Machine?
First, discuss the details and prices of all machines with our sales staff. Secondly, confirm the price and payment terms, trade guarantee / tt / custody / Western Union remittance, etc. Please send us the order, confirm the proforma invoice and arrange the deposit. We will arrange production as soon as we receive the deposit. Please give us the final payment when the machine is ready. We will arrange the reservation for you after receiving the final payment.
Our Company:
Our company is mainly engaged in the research and development of powder equipment such as baking machines, 50kg cocoa baking machines, chemical powder mixers, washing powder mixers, etc. The products are widely used in food, medicine, chemical and other industries and have gained a good reputation. After 15 years of development and accumulation, our company has become one of the most influential equipment manufacturers in the industry. We are willing to grow and develop together with new and old customers.
