Product Details:
|
| Product Name: | Crystal Sugar Powder Milling Machine White Brown Icing Sugar Grinding Mill | Material: | SS304/316 |
|---|---|---|---|
| Feed Size: | <10mm | Output Size: | 10-120 Mesh |
| Capacity: | 20-800kg/h | Voltage: | 220-480 V |
| Highlight: | 20kg/h powder milling machine,120 Mesh Powder Milling Machine,20kg/h powder grinding machine |
||

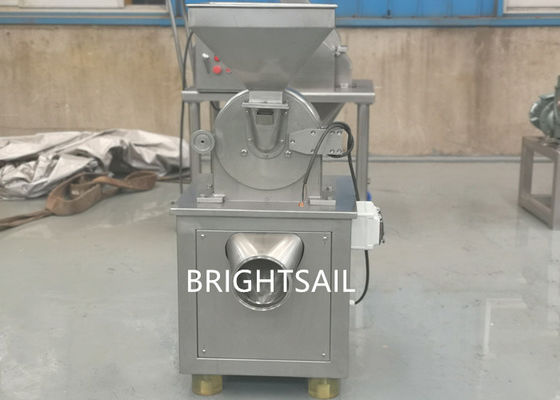

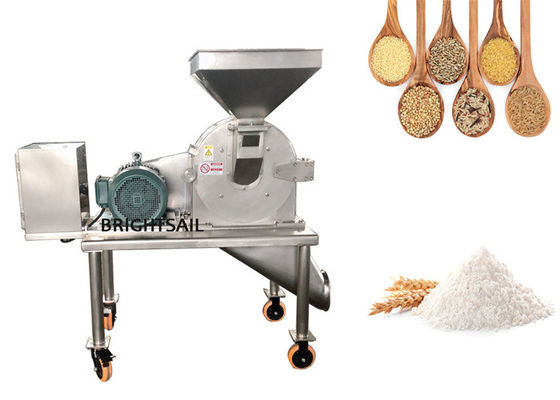

10 - 120 mesh Powder Milling Machine / Sugar Grinding Mill
Principle:
The machine uses the high speed rotating cutters and the fixed cutters to crush and shear raw materials, which is accompanied by strong airflow inside of the mill chamber to bring out the finished products through the screen. The size of granules can be achieved by changing of the screen. Its fineness can be adjusted from 10-120 mesh.
Technical data:
| Model | BSU-20 | BSU-30 | BSU-40 | BSU-60 |
| Capacity(kg/h) | 20-150 | 30-300 | 50-400 | 100-800 |
| Size of input granules(mm) | <6 | <10 | <10 | <10 |
| Size of output granules(mesh) | 20-120 | 20-120 | 20-120 | 20-120 |
| Power(kw) | 4 | 7.5 | 11 | 22 |
| Speed of principal axis(rpm) | 4650 | 3800 | 3400 | 2800 |
| Overall size(L*W*H)(mm) | 650*820*1500 | 700*900*1650 | 750*1000*1750 | 950*1250*2150 |
| Weight(kg) | 230 | 330 | 430 |
900 |
Powder grinding machine Features
