Product Details:
|
| Product Name: | Grain Powder Mill Grinder Milling Making Machine Air Classifier Mill | Material: | SS 304/316 |
|---|---|---|---|
| Capacity: | 20-1800 Kg/h | Input Size: | <15 Mm |
| Fineness: | 60-2500 Mesh | Crusher Motor: | 11-75 Kw |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Highlight: | hammer pulverizer machine,spice making machine |
||
Industry herbal powder making machine ginger kava root coconut shell grinder

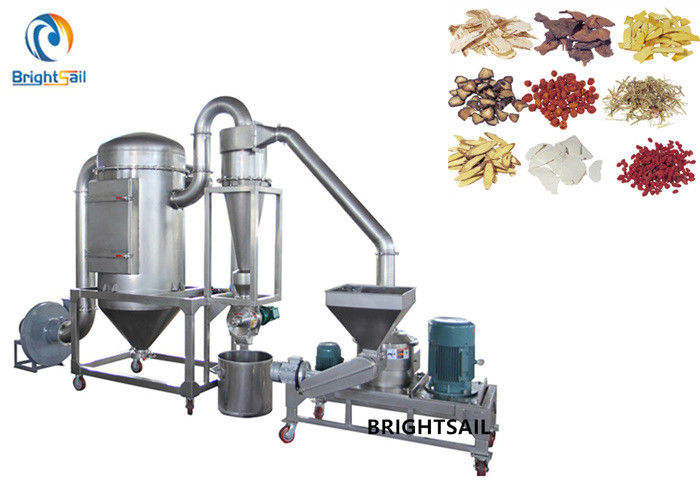

BSP ultra-fine pulverizer is composed of three parts: main engine, auxiliary machine and electronic control box. It is compact in design, reasonable in structure, and has air-selected type, no screen and no net. The machine is equipped with grading mechanism, which can make the crushing and grading complete at one time.Negative pressure conveying makes the heat generated during crushing continuously discharged, so it is also suitable for the crushing of heat sensitive materials.
Working method:
The material enters the grinding chamber through a hopper and screw conveyor, where it is sheared and broken by rapidly rotating blades. Power enters the classification chamber through the guide ring. When the classification wheel rotates, both air and centrifugal forces act on the powder.
Because the particle size is larger than the critical particle size (classified particle size), they are thrown back to the grinding chamber for re-grinding. When the particles smaller than the critical particle size enter the cyclone separator and bag filter through the discharge pipe At the time, the negative pressure air supply method is adopted, and the output meets the product requirements.
Main features:
1. Material: Generally it is 304 stainless steel, if you want 316 stainless steel, we can do it for you.
2. Automatic operation: just press the button
3. Easy to clean: Generally, a water-cooled air compressor can be used.
4. The final powder particle size range is 60 mesh-2500 mesh,
5. The machine has a water cooling system to reduce the working temperature, so it can work for a long time.
6. The cyclone separator is matched with the dust collector, the dust collection is fast and convenient, and no dust is flying.
After-sales service:
1. Before deliver the machine, we will test and adjust everything properly.
2. Once all is done, we will make detailed picture for customer to confirm for delivery.
3. Operation video & working manule will be provided with the machine, so that clients can use our machine without difficulty.
4. Any problems occur while using, we will provide profession advice and technical support ASAP.
5. Spare parts of the machien is provide whole serving life with resonable price.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
