Product Details:
|
| Product Name: | Hot Air Circulating Fruit Vegetables Spices Food Drying Oven Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Heating Source: | Steam+electricity | Warranty: | One Year |
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Highlight: | oven drying machine,air circulation oven |
||
Industry food dryer oven machine date seaweed fruit mango dehydrator equipment

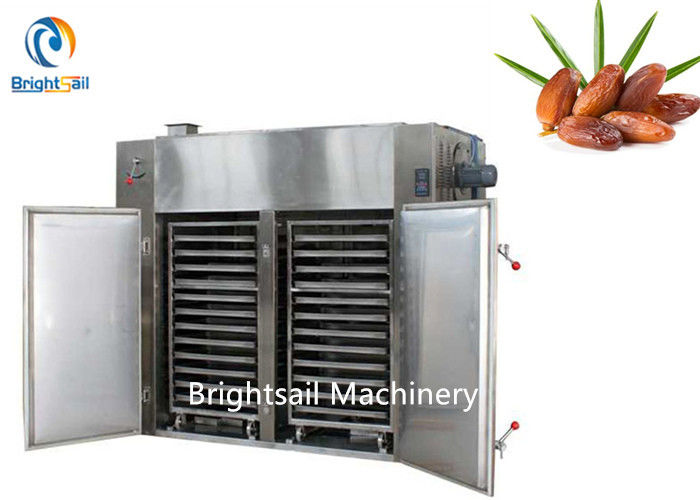

BSO hot air circulation drying machine is suitable for drying and dehydration of material and product for pharmaceutical, chemical, food, agricultural, aquatic, light industry, heavy industry; such as Chinese herbs, grains, fruits, vegetables, spices, seafoods, cassava, plantain, etc.
Working method:
Steam or electric energy is used as heat energy. The heat is generated by a steam radiator or an electric heating element. The fan conducts convective heat transfer, transfers heat to the material, and continuously adds fresh air to the oven and exhausts humid air from the oven. The oven should maintain proper relative temperature and humidity while drying. The most important feature is that most of the hot air is circulated in the drying room, which enhances the transfer of heat and mass and saves energy.
Main features:
1. Most hot air are circulating in the inside oven which has high thermal efficiency and save energy.
2. The heating source can choose steam, or electricity.
3. There are adjustable wind partition plate which can dry the materials averagely.
4. Low noise, reliable working, automatic temperature control, convenient installation and maintenance.
5. Wide application, it can dry all kinds materials which is the general drying equipment.
6. Mechanical production which can ensure the quality of dried products, the drying time and temperature can be set according to customer’s requests.
7. Over-temperature protection of Hot Air Circulation Drying Oven : When over temperature, the machine warning light indicates, automatic shutdown.
8. High and low temperature alarm protection device.
Our company:
Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as grinding machines, mixing machines, drying machines, conveying machines, sifting machine, packaging machine, etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
Quality is our fundamental, credibility is our aim, customer satisfaction is our eternal pursuit. Welcome to visit, discussions and suggestions as well as inquiries from the new and old customers. Wish to establish a long-term partnership and friendship with clients all over the world.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
