Product Details:
|
| Product Name: | Hot Air Circulating Fruit Vegetables Spices Food Drying Oven Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Heating Source: | Steam+electricity | Warranty: | One Year |
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Highlight: | oven drying machine,air circulation oven |
||

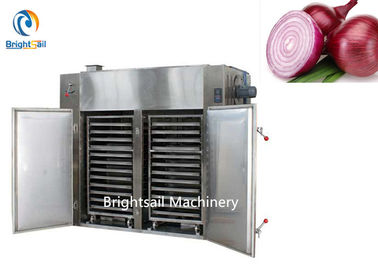

Hot air circulation dryer oven machine onion garlic spices drying equipment
BSO hot air circulation drying machine is used in spices, herbs, grains, seaweed, seafood, cassava, etc. It is equipped with low noise axial flow fan and automatic temperature control system, the circulatory system all closed, so that the thermal efficiency of oven drying room from the traditional 3-7% to the current 35-45% The maximum thermal efficiency up to 50%.
Working method:
The basic principle of the BSO series hot air circulation drying oven is to use steam or electricity as heat energy, and heat is generated by a steam radiator or electric heating element. The fan performs convective heat transfer, heat is transferred to the material, and fresh air is continuously added to the oven to exhaust moisture. Gas is blown from the oven. When drying, maintain proper relative temperature and humidity. The most important feature is that most of the hot air circulates in the drying room, thereby enhancing heat and mass transfer and saving energy.
Main features:
1. Stainless material prevents internal corrosion and allows long durability
2. PID temperature control allows constant temperature distribution
3. Side- to-side circulation of hot air maintains constant temperature distribution in the vertical direction
4. Has a filter mounted at the air inlet
5. Temperature display function (high, medium and low)
After-sale service:
1) We provide one years warranty for our main machine and life time technical support.
2) Has a number of highly quailty engineers to provide free technical training foy you.
3) We can offer you the spare parts of the machine for free if any parts of your machine breaks down because of quality problem.
4) We can send our engineers to you country to maintain your machines if you need.
5) We can help you with all the problem you meet with during the operation of the machine through pictures or videos.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
