Product Details:
|
| Product Name: | Dry Powder Mixer Blender Ribbon Flour Mixing Blending Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Power: | 3-90kw | Speed: | 17-62 Rpm |
| Material: | SUS304,SUS 316,carbon Steel | Volume: | 50-20000L |
| Package: | Wooden Case Or Container | Warranty: | One Year |
| Highlight: | spice powder making machine,pepper powder making machine |
||

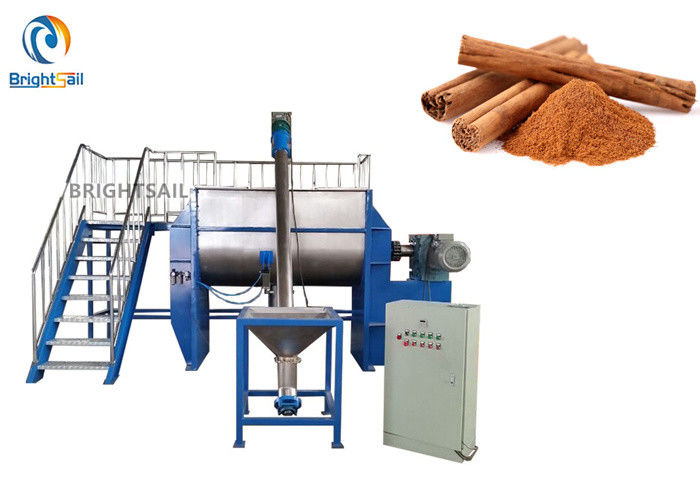

Commercial spice powder blending machine masala curry chilli flour ribbon mixer
Our BSR ribbon mixer is one of the most popular products of our company. The outer ribbon push the material from the two sides to the center, and the inner ribbon push the material from the center to both sides to get a high effective mixing, so horizontal double-ribbon mixer is widely used in powder material manufacturing process in many fields, like chemical, medicine, food and construction fields. It is suitable for mixing different kinds of powders, powder with small quantity of liquid, and powder with granule.
Working method:

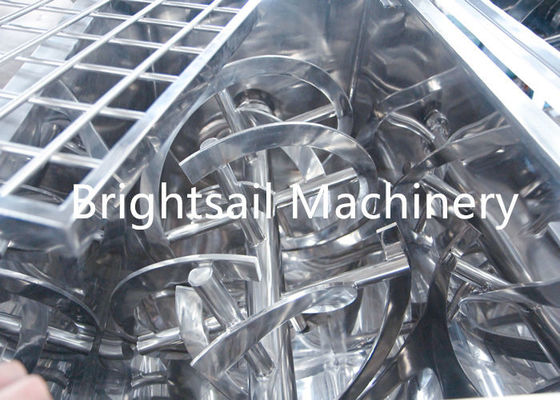

In the direction of rotation, the outer ribbon pushes materials from both ends to the middle, while the inner ribbon pushes materials from the middle to both ends. Ribbon wind with different angle direction carries the materials flowing in different directions. Through continuous convective circulation, the materials are sheared and mixed thoroughly and quickly.
1. It is suitable for mixing materials of powder-powder and power-liquid, especially for paste,powder and thick materials, such as putty, stone coatings, metal powders etc.
2. It is a new type of mixing equipment with high efficiency, high uniformity, high load factor,low energy consumption, low pollution and little destruction to frangible material.
3. Double ribbon mixer drive the material from two ends to centre through the help of the outer ribbon, while the inner ribbon push the material from centre to two ends, thus, material achieve a high mixing effect at short time.
4. The ribbon mixer can be equipped with heating or cooling jacket if temperature control is required. We will add spraying or atomizing unit inside the tank.
Our company:
Brightsail Machinery is specialized in manufacturing grinding machine, pulverizer, mixer, charging machine, dryer, packing machine etc, which are widely used in foodstuff, pharmaceutical and chemical industries, etc.
Over these years, the company has made elaborate design and improvement, on the basis of absorbing features and advantages of similar products both at home and abroad. The products have won good reputation and praises among all customers, from at home and abroad, too. BrightSail Machinery is willing to create prosperous future with you!
Technical data:
| Model | Max work volume(L) | Speed(rpm) | Motor(kw) | Overall size(L*W*H)(mm) | Weight(kg) |
| BSR-100 | 60L | 62 | 3 | 1080*758*615 | 330 |
| BSR-300 | 180L | 49 | 5.5 | 1550*812*1015 | 780 |
| BSR-500 | 300L | 46 | 7.5 | 1975*1059*1120 | 955 |
| BSR-1000 | 600L | 35 | 11 | 2340*1380*1455 | 1400 |
| BSR-2000 | 1200L | 33 | 15 | 2480*1651*1805 | 2500 |
| BSR-3000 | 1800L | 33 | 18.5 | 2945*1896*1980 | 3300 |
| BSR-4000 | 2400L | 29 | 22 | 3038*1946*2205 | 3600 |
| BSR-5000 | 3000L | 29 | 30 | 3932*2010*2035 | 4320 |
| BSR-6000 | 3600L | 26 | 37 | 3938*1882*2246 | 5300 |
| BSR-8000 | 4800L | 26 | 45 | 3986*2160*2516 | 6800 |
| BSR-10000 | 6000L | 19 | 55 | 4500*2270*2667 | 8900 |
| BSR-15000 | 9000L | 17 | 75 | 5363*2470*3020 | 9950 |
| BSR-20000 | 12000L | 17 | 90 | 5670*2650*3497 | 11140 |
