Product Details:
|
| Heating Source: | Steam+electricity | Warranty: | One Year |
|---|---|---|---|
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Highlight: | oven drying machine,air circulation oven |
||

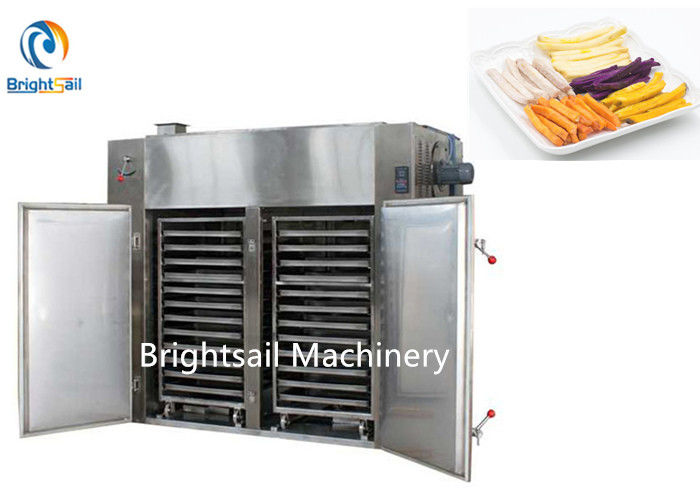

Fruits and vegetables dryer oven machine mango pineapple food drying machine
BSO hot air circulation drying machine is suitable for the material and product hot solidificationanddry dewatering in the pharmaceutical, chemical, food, farming, Isideproduct, aquatic product, light industries, heavy industries andothers industries. Such as: raw material medicine, preparedherbal medicine of Chinese traditional medicine, powder, particle, drinking agent, pill, dewatering vegetable, dried fruit piece, sausage, plastics, etc.
Working method:
It adopts a fan circulating air supply mode, and the air circulation is uniform and efficient. The wind source is driven by the circulating air supply motor (using the non-contact switch) to drive the wind wheel through the heater, and the hot air is sent out, and then the air is taken into the air chamber through the air passage, and then the used air is sucked into the air passage to be recirculated as a wind source. Use for heating. Ensure indoor temperature uniformity. When the temperature value oscillates due to the operation of the switch door, the air supply circulation system quickly returns to the operating state until the set temperature value is reached.
Main features:
1. Most hot air is circulated in the oven, the Heat efficiency is high and the energy is saved.
2. By using the forced ventilation function, there are adjustable air distribution plates inside the oven.
3. The materials can be dried uniformly, and the heating source might be steam, or electricity.
4. The whole machine is low in the noise and the operation is in balance.
5. The temperature is controlled automatically.
6. The installation and maintenance are easy.
7. The machine can be used for drying various materials and is versatile drying equipment.
Our service:
Quality assurance :
1. Before shipment, every set of machine would be strictly inspected according to QC, to ensure the quality.
2. There would be quality certificate along with machine delivered.
3. Real-time video checking for machine manufacturing process would be supplied if you like.
4. Spot checking and testing would be preferred and suggested, if you like to pay visiting to our workshop.
After sale service:
1. Operation training of machine, English manual book would be supplied.
2. Regular inquiry for machine running and usual maintenance would be sent in the email regularly.
3. The spot installation & adjusting is supported, especially for whole Production Line design and arrangement.
4. 100% quality guaranteed, and we would be there all the time to make sure your production is all right any time.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
