Product Details:
|
| Heating Source: | Steam+electricity | Warranty: | One Year |
|---|---|---|---|
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Highlight: | oven drying machine,air circulation oven |
||

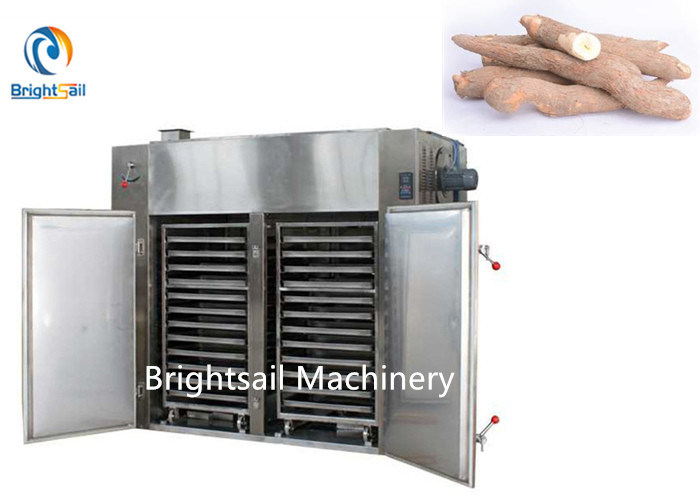

Food dryer oven machine cassava yam plantain hot air drying equipment with CE
BSO drying machine adopts energy saving and environmental protection new heating technology, so it pay more attention on the energy saving and security. When it is absorbed by the heating material, it can become the heating energy, which can shorten production cycle and improve the quality of production. It is a ideal and bright prospect dryer equipment with using convenient and obvious effect.The dryer equipment usually applies to food, chemical, agriculture, industrial and so on.
Working method:
The working principle of hot air circulation Oven is to make use of the steam or electric as heat source, through heating the air by heat exchange and adopting the axial fan as the driving power, the moisture content of hot air materials is reducing so as to realize the purpose of drying.
Main features:
1. High thermal efficiency, energy conservation.
2. Utilizing the principle of forced ventilation box with adjustable air divider plate, uniform drying.
3. Machine has low noise, smooth operation. Temperature controlled, easy installation and maintenance.
4. Wide range of applications, can be used for drying various materials and is a versatile drying equipment.
5. The material is stainless steel, keep the machine durable using.
Our company:
Brightsail Machinery adhere to "People-Oriented" "Scientific Management" principles and actively engaged in the research and development of new products since founded. After years of experience, we have successfully developed many kinds’ powder solution rquipments, such as grinding machines, mixing machines, drying machines, conveying machine, packing machines, sifting machines, etc, which are wildly used in Pharmaceutical, Chemical, Food, and Scientific Research. We won the trust and high praise from our customers due to our outstanding quality and perfect service.
"Quality best, Customers first" is our principle, "Honest and Innovation" is our goal, we wholeheartedly service for every customer from home and abroad with high-quality and efficient products and would like to cooperate with you to create a better future.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
