Product Details:
|
| Material: | SS 304/316 | Capacity: | 50-1000 Kg/h |
|---|---|---|---|
| Fineness: | 40-1000 Mesh | Feed Size: | <15 Mm |
| Voltage: | Customized | Warranty: | One Year |
| Highlight: | vegetable powder making machine,flour hammer mill |
||

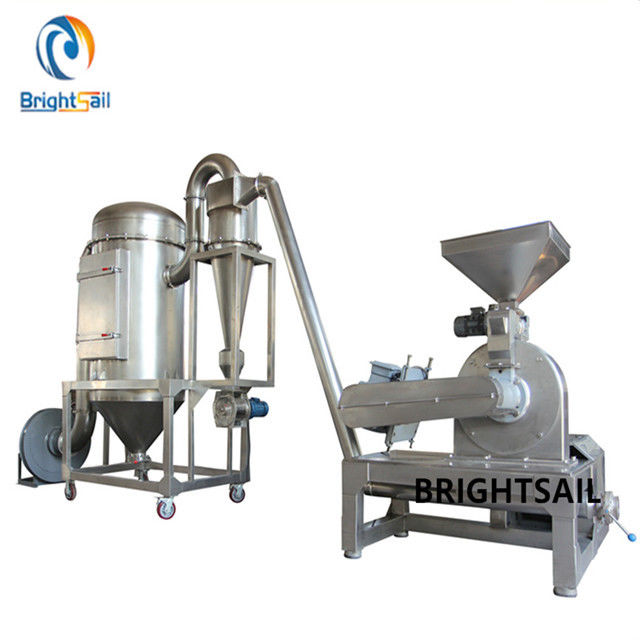

Big capacity medicine salt baking soda powder pin mill grinding machine
BSZ pin mill specialized in milling for various fruit, walnuts, coffee beans, cocoa beans, peanuts, rice and other food and chemical raw material. It has 2 grinding discs (cavity disc & door disc) which rotate against each other to achieve high speed rotating. It can be used without pulse duct collecting system, just single mill. If you need no dust during the production, you can choose pin mill set with the pulse system.
Working method:
Bidirectional pair wheels adopt the way of reverse rotation of front and back grinding wheels, thus this way improves the crushing effect. Double discs install the needle cylinders whose diameters are different, every part arrays needles and bars through the technology of three dimensional simulation, designing the layout rationally and thus it can control the materials to achieve the effective split effect in the gap of needle bar efficaciously. Needles and bars can adopt the shape of hexagonal,square,wolf teeth and so on according to crushing materials. The shape of wolf teeth is all called corn cob rollermill, and this machine has the special effect for the engineering plastic with high melting point to flour at room temperature. Needle and bar mill adopt the way of quantitative feeding of screw, controlling the even motion of materials in the inward of millstone. The ways of discharge are output in the natural state and discharge of negative pressure method. This machine does not have mesh screen in the chamber of grinding wheel, and it adjusts the fineness of crocus through the wire-speed of mill wheel, it can also classify materials through external gradingmethod.
Main components:
1. Crusher part:With 2 grinding discs, its speed can achieve very high, so the powder made by auto rice mill machine is finer than common mill.
2. Cyclone part:cyclone can seperate dust from powder(granules).Rotary valve make powder discharge speed even,and is also made of stainless steel.It is convinent to clean and dismantle.
3. Pulse Dust Collecting box:dust is collected inside the dust collecting box.Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.With pulse-jet cleaning, dust can be collected very conviniently.
Main features:
1) Simple structure in linear type, easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) No need screen in grind chamber, change powder size by changing speed.
4) Can make very fine powder.
Drawing:
Technical data:
| Model | BSZ-350 | BSZ-450 | BSZ-550 |
| Capacity(kg/h) | 60-200 | 150-500 | 230-700 |
| Feed size(mm) | <15 | <15 | <15 |
| Output size(mesh) | 40-1000 | 40-1000 | 40-1000 |
| Cavity disc crush motor(kw) | 18.5 | 22 | 37 |
| Door disc crush motor(kw) | 15 | 18.5 | 30 |
| Feed screw motor(kw) | 0.37 | 0.55 | 0.75 |
| Speed(rpm) | 12000 | 9600 | 8400 |
